Diesel increased horsepower water well drilling rig: This rig is mainly used for geothermal drilling, farm irrigation, yard, garden and water well drilling. The drill bit diameter is 70-300mm, and the drilling depth is 0-180m. It can also be used for small construction piles, such as farm buildings or factories.
Features
1. Unique design and simple drilling structure.
2. Easy to transport and operate.
3. It can hit hard rock layer, otherwise it can drill through hard stratum.
4. The maximum depth can be drilled to 180m. Equipped with gasoline model to increase the mud pump to reduce labor intensity.
6. High efficiency, it can reach a drilling speed of 20 meters deep per hour in plain areas.
7. Ensure easy operation and long service life, saving you more labor and money.

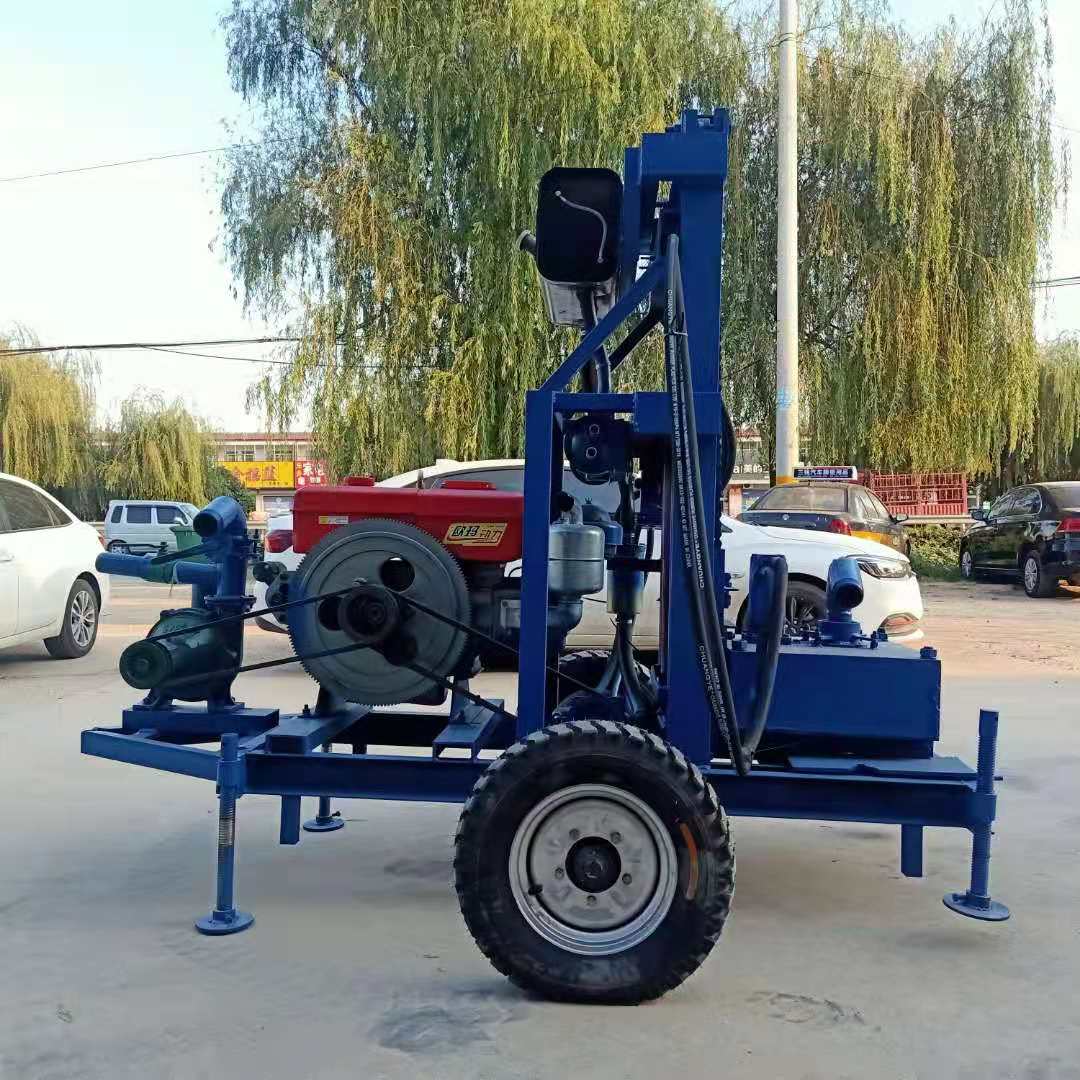

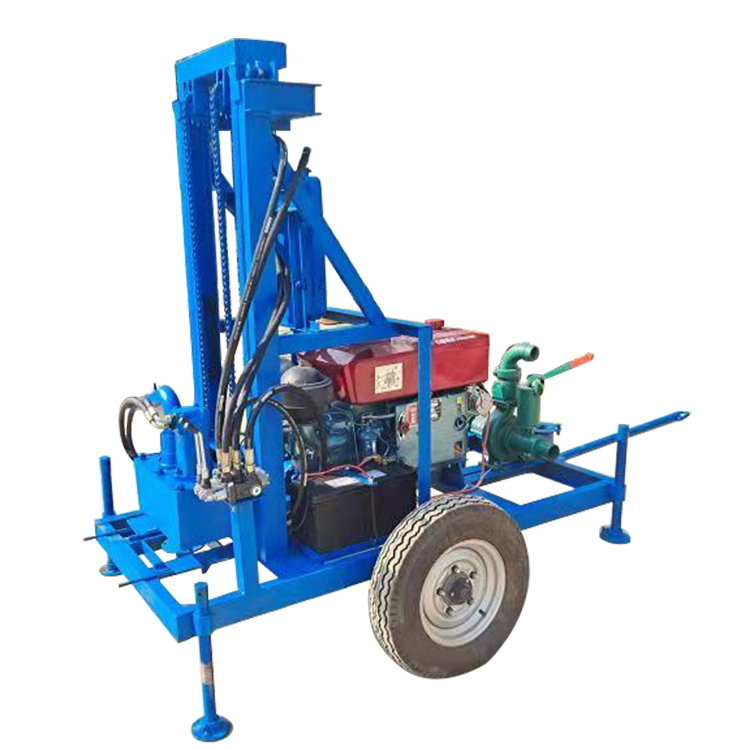

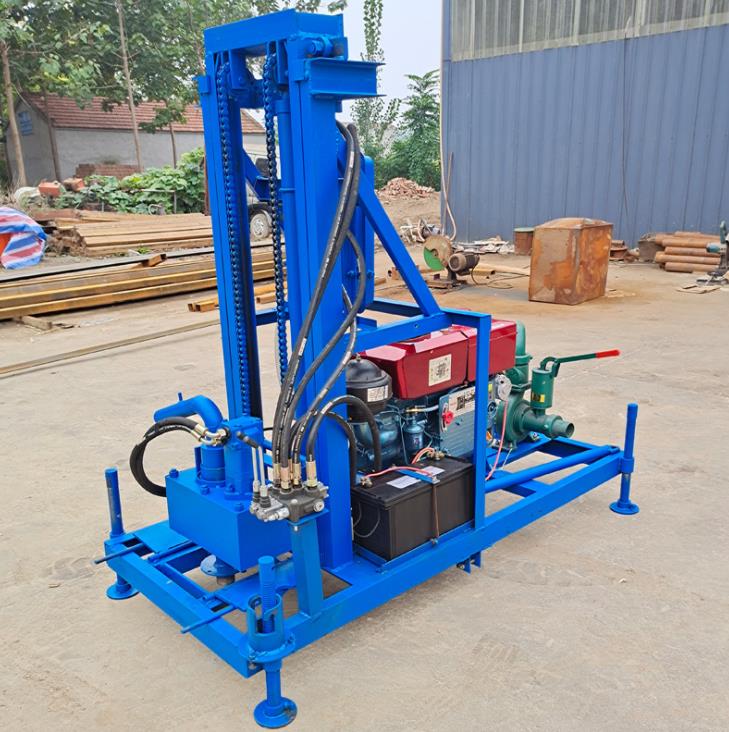

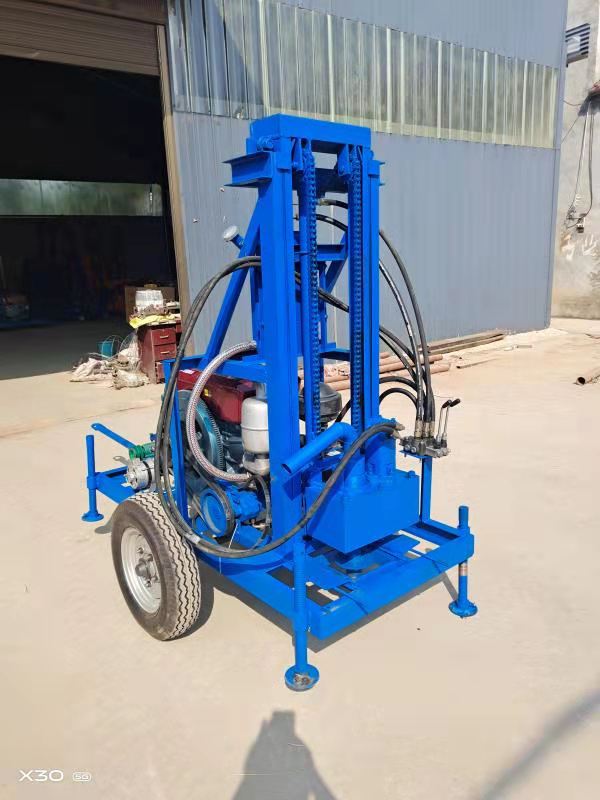

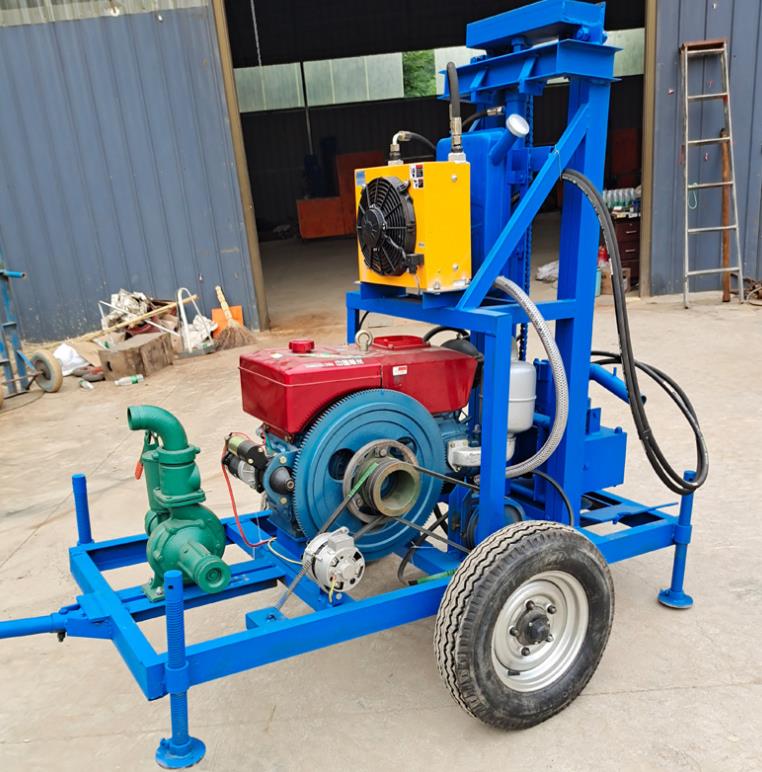

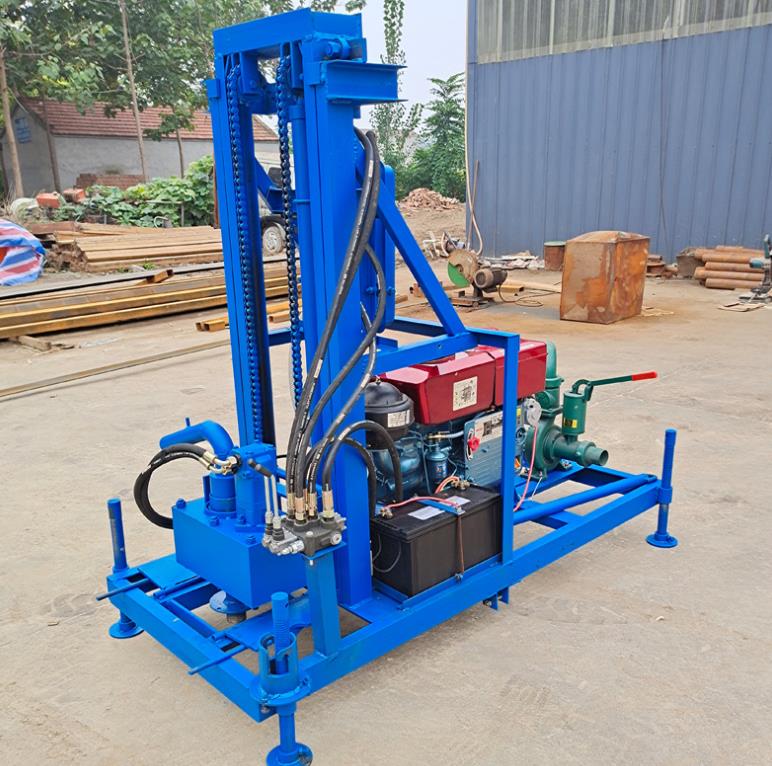

Pictures display
| Model | KL-ZJ150 |
| Drill rod caliber | Φ50mm |
| Run Of Steel | 1.5M |
| Drill pipe replacement method | Unload the rod automatically and change the drill pipe manually |
| Drilling crushing method | Rotary |
| Drilling depth | 150M |
| Drilling diameter | Within 400MM |
| Elevating power | 2000KG |

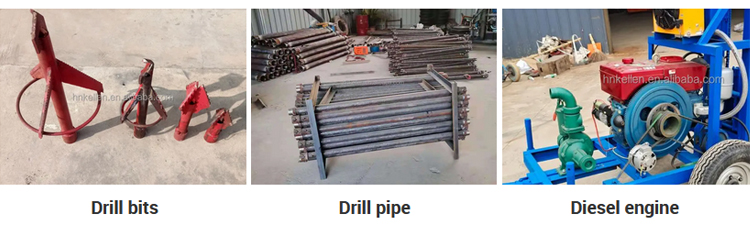

| The complete equipment of the machine includes the main engine and tools, a diesel engine, 100 meters of drill pipe, 2 drill bits,1 high pressure water pump, 5 meters of high pressure water pipe, and 1 manual. | |
