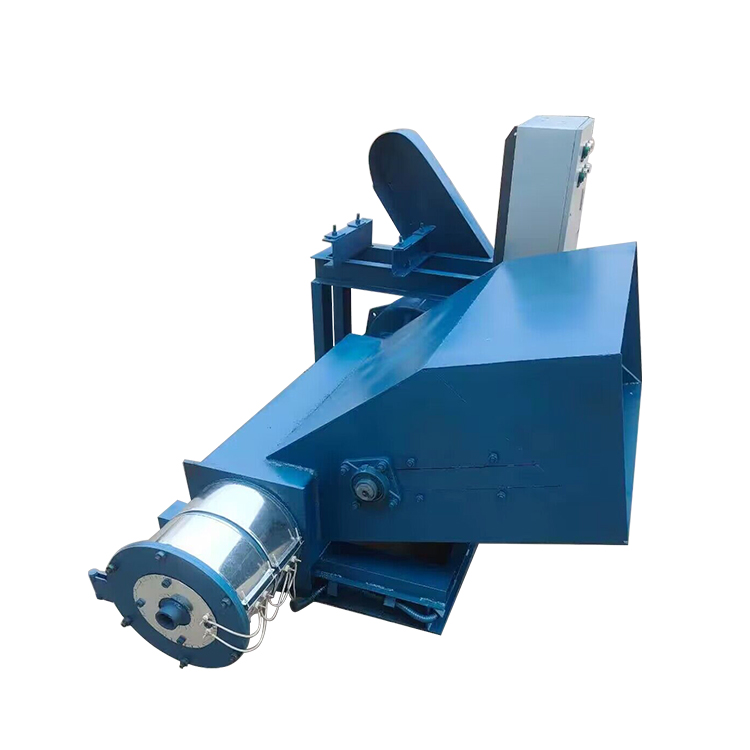

The all-in-one foam forming machine can also be called the foam forming unit and the foam producing unit, which is actually a combination of a foam block making machine and a foam pulverizer. The foam pulverizer is a device used to pulverize waste foam, such as foam fast food boxes, cake boxes, foam packaging materials, insulation materials and foam materials, omentum and other white polluted garbage. Foam block making machine is also called foam block material machine. , The foam machine is to heat and plasticize the waste foam particles crushed by the foam grinder, and extrude them into lumps, which is convenient for transportation and sales.
Product introduction

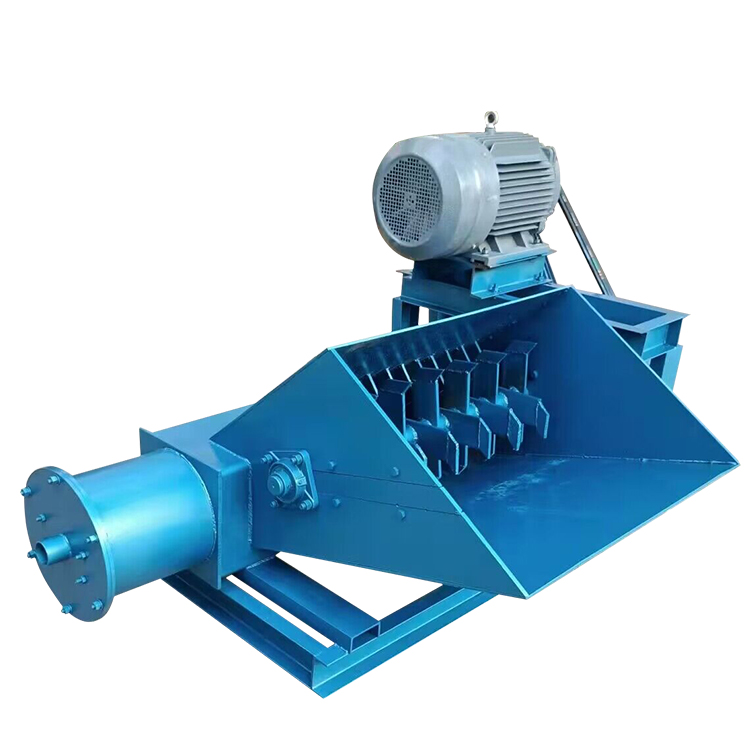

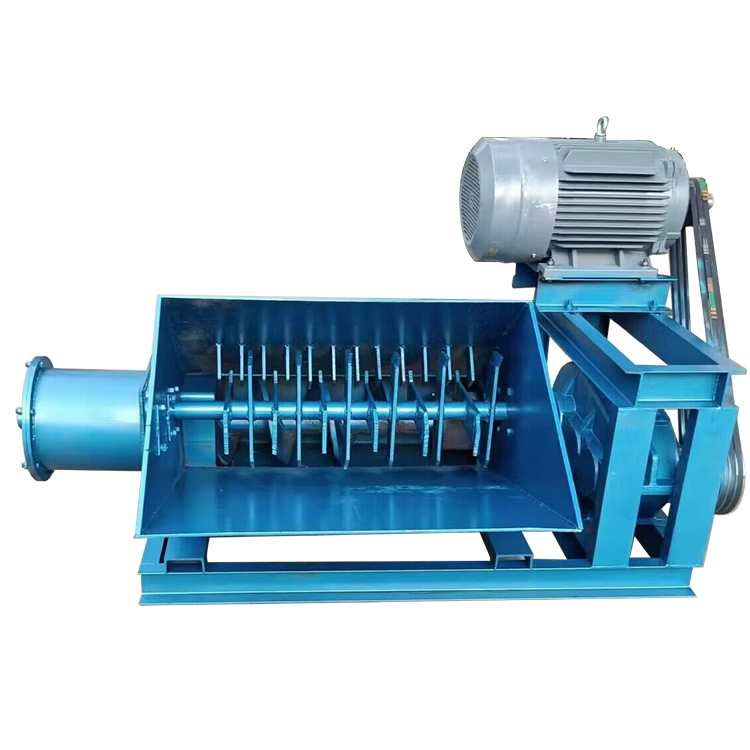

(1) Horizontal pulverizer, the pulverizer part adopts a thickened crescent blade, which is more conducive to the feeding of foam and greatly increases the output of the crusher; the main shaft of the pulverizer adopts a solid shaft, which greatly increases the capacity of the crusher. .
(2) The pulverizer produced has been improved on the basis of the original pulverizer, so that the foam can simply remove dust and sand from the raw materials when it is pulverized, which greatly improves the cleanliness of the raw materials and also significantly improves the cost of foam processing. the fineness of the particles;
Working principle
The foam is directly pushed in from the material inlet, crushed by the crushing device of the machine, and then falls into the main shaft barrel, and then pushed to the material outlet by a screw to be heated and melted into EPS blocks.
Product Usage
The waste foam is crushed and melted into blocks to reduce the volume and facilitate transportation.

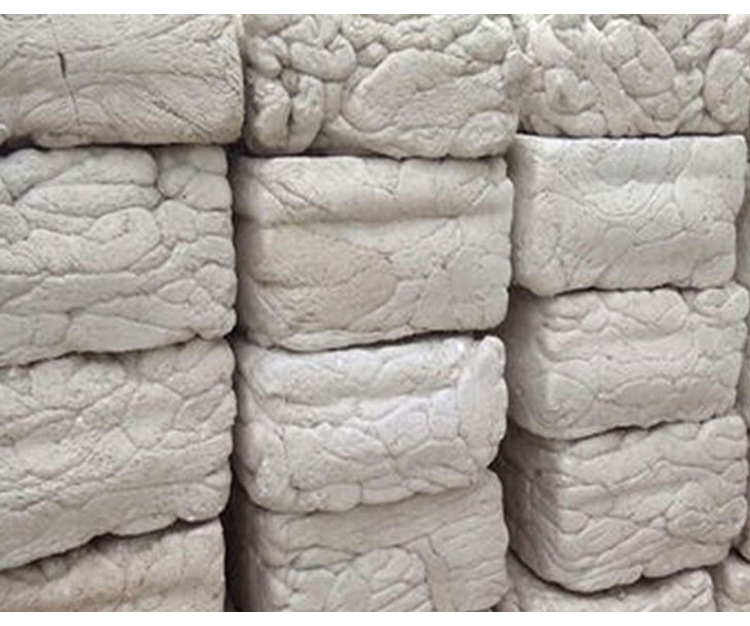

Finished product drawing
We have a variety of models available, this parameter is only one model, for more information, please consult us.
| Model | KL-YZPM-150 |
| Size of motor (hp) | 15KW |
| Size of screw (mm) | Diameter 60mm |
| Length of screw (mm) | 960mm |
| Size of tube (mm) | 220mm |
| Size of feeder (length*wide) | 400*600mm |
| Total dimension of the machine | 1.25*1.05*1.3m with motor |
| Capacity of the machine per hour | 100-150kg/h |
| Size of gear | Small gear--90mm, large gear--260mm |
| Package size | 1.4*1.45*1.6m |
