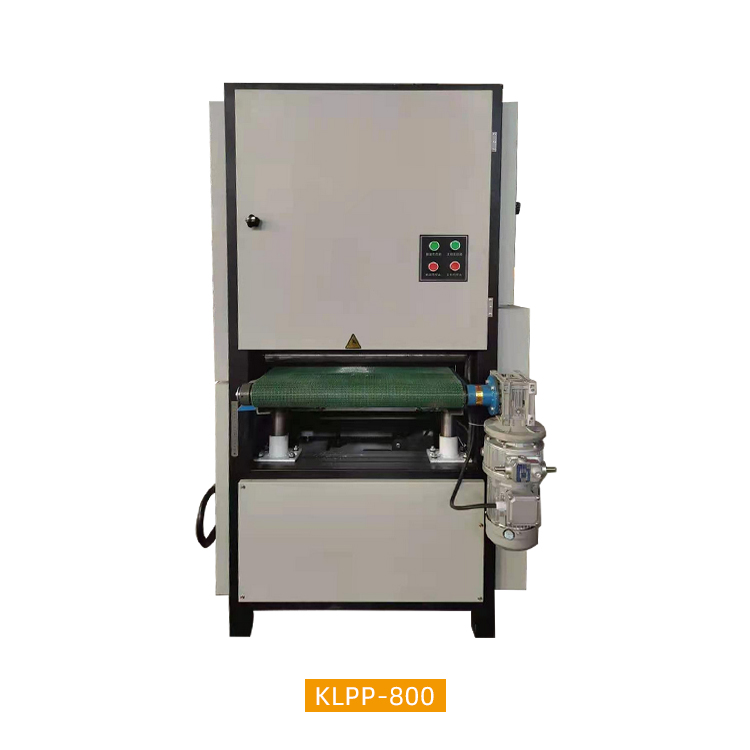

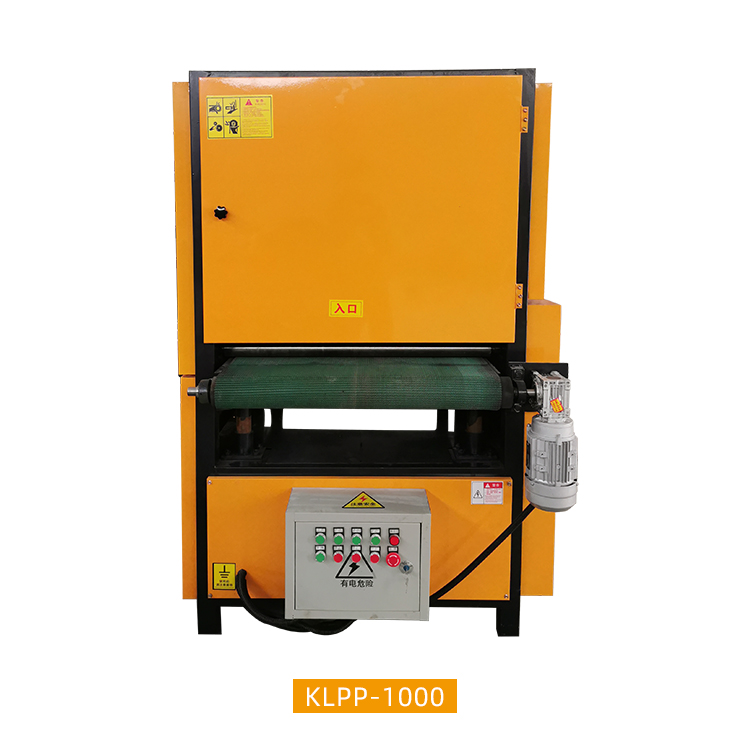

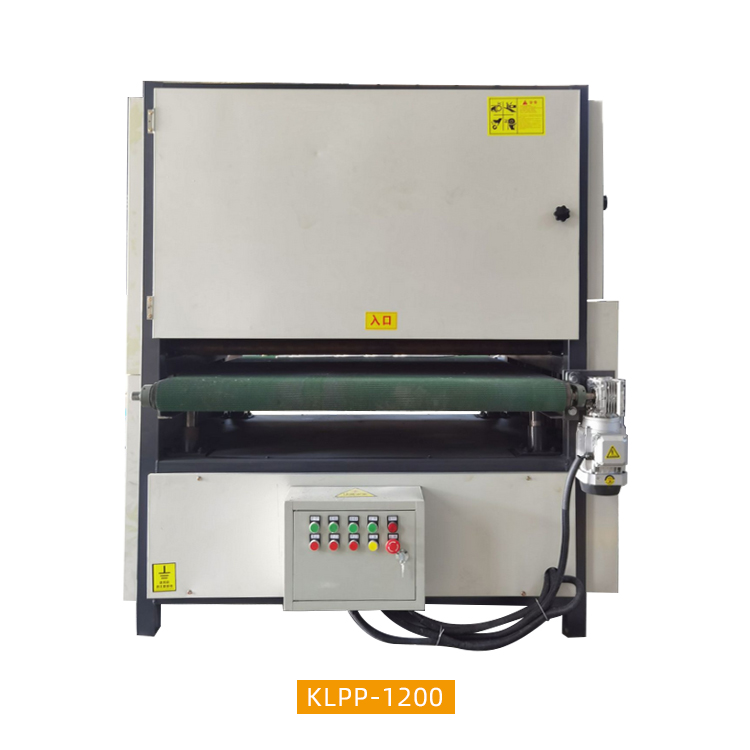

Plane Polishing Machine

Product Description

The plane polishing machine series is usually used for plane metal polishing. Its working principle is that the motor drives the abrasive belt installed on the polishing machine to rotate, and the abrasive belt rubs the surface of metal workpiece to remove paint pollution, oxide layer, burr and mud stain. The plane polishing machine is made of high-quality materials, durable and easy to operate.

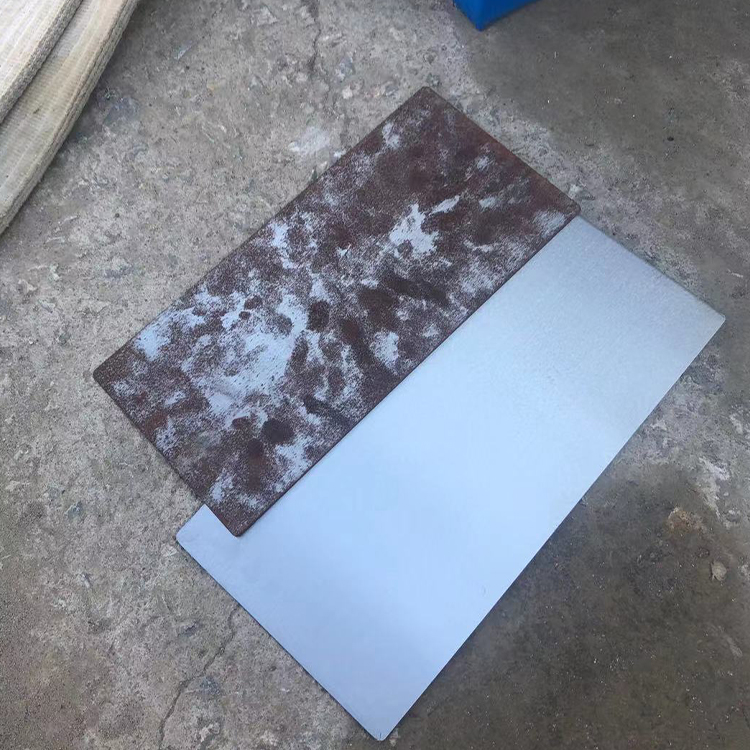

Finished product display

Working Principle of Machine Tools

The grinding wheel (1000 impellers/polishing wheels) is used as the grinding tool, and the typical cylindrical grinding technology is adopted. The grinding wheel (1000 impellers/polishing wheels) can be roughly grinded, silently or polished by its material, granularity, hardness and contact mode. Multi-head linkage can double the processing efficiency.As long as the machine features: the speed of different wheels can be adjusted, it is suitable for polishing of workpieces of different sizes and diameters.

Transportation and lnstallation of Machine Tools

1. In transportation, it is necessary to tie firmly. When hoisting,it is necessary to use steel wire to pass through the bottom of the machine.The diameter of the steel wire is not less than 15 mm. It is necessary to keep balance and not to tilt.When loading and unloading forklift trucks, it is necessary to select the position of the center of gravity to prevent tilting.

2.When installing, the foundation should be balanced, the bottom should be all landed, and the machine should be kept level.When necessary, the ground silk should be struck.

3.When the machine is not in use for a long time, it should coat the swallow tail sliding surface with rust-proof oil, and pay attention to dust-proof and moisture-proof.

4.When equipped with an environmental protection cover, the equipment needs to be cleaned regularly, including lubricating oil: the dust in the motor is easy to enter and needs to be cleaned regularly, so that the life of the equipment will be greatly increased and unnecessary damage will be avoided.
