Multi-Station Punching Machine

Features

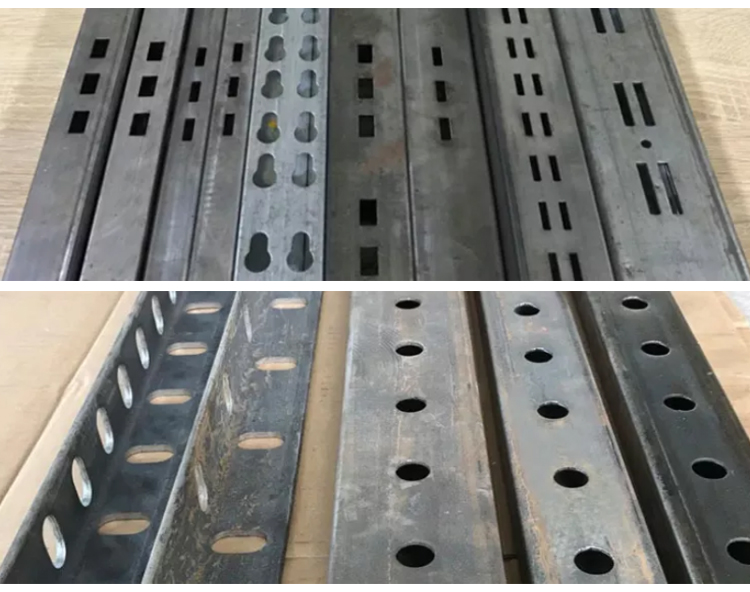

Punching holes are smooth and no burrs and no deformation. Half single hole punching,double hole punching,Isometric hole punching,none- Isometric hole punching,rotary punching,Hole or Completely hole are available, The hole shape can be customized as per the request.

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function, equipped with hydraulic and Servo System.

2. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skillful workers can change the mould within 10 minutes.

3. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

4.When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing. In addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.

5.The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.

Application

Stainless steel security net, guardrail zinc steel, aluminum alloy, square tube, round tube, angle iron, shelf, rectangular tube and other punching and cutting processing, suitable for use below 50 diameter.

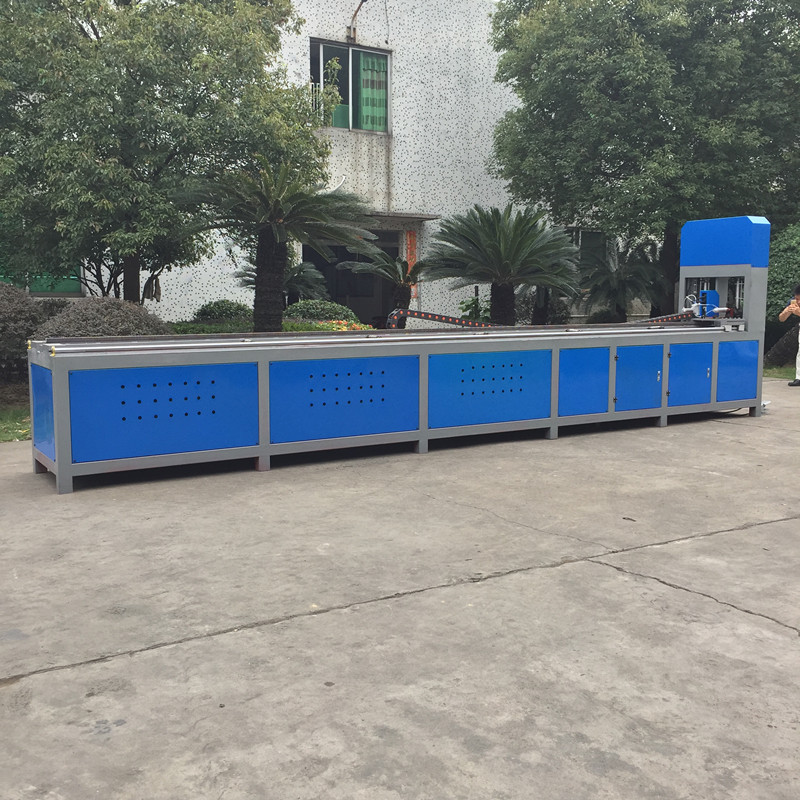

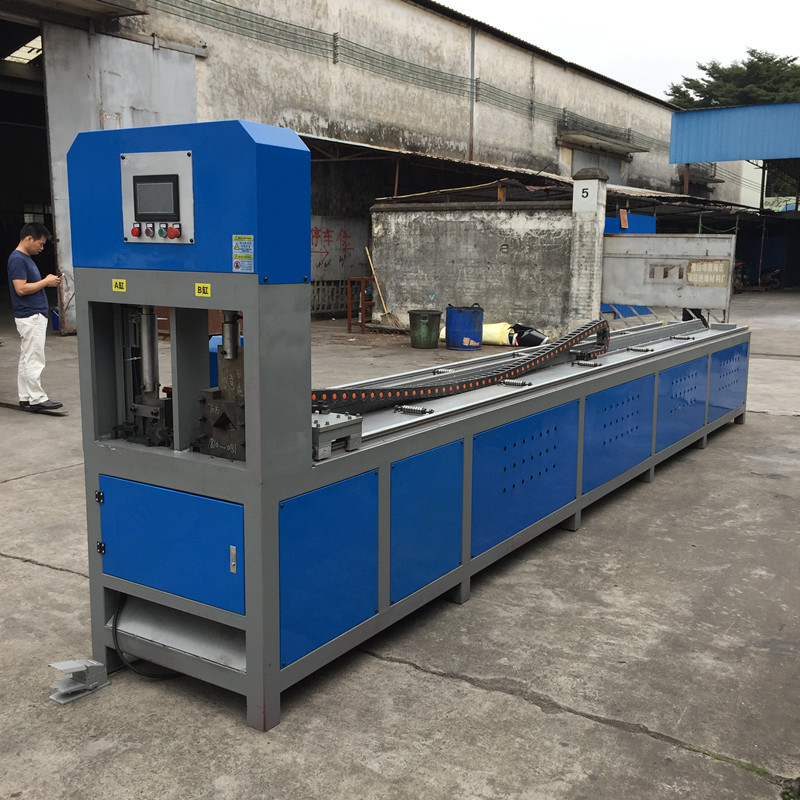

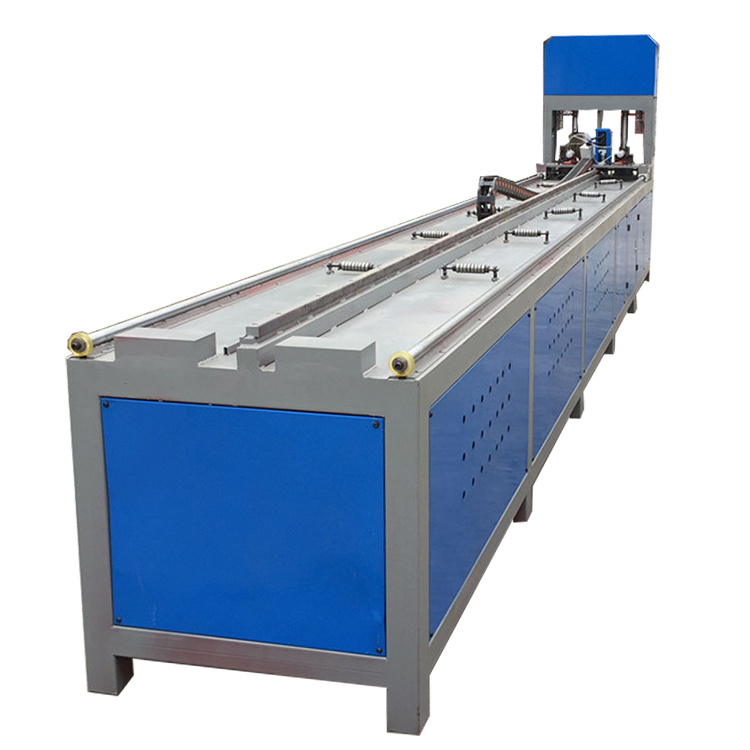

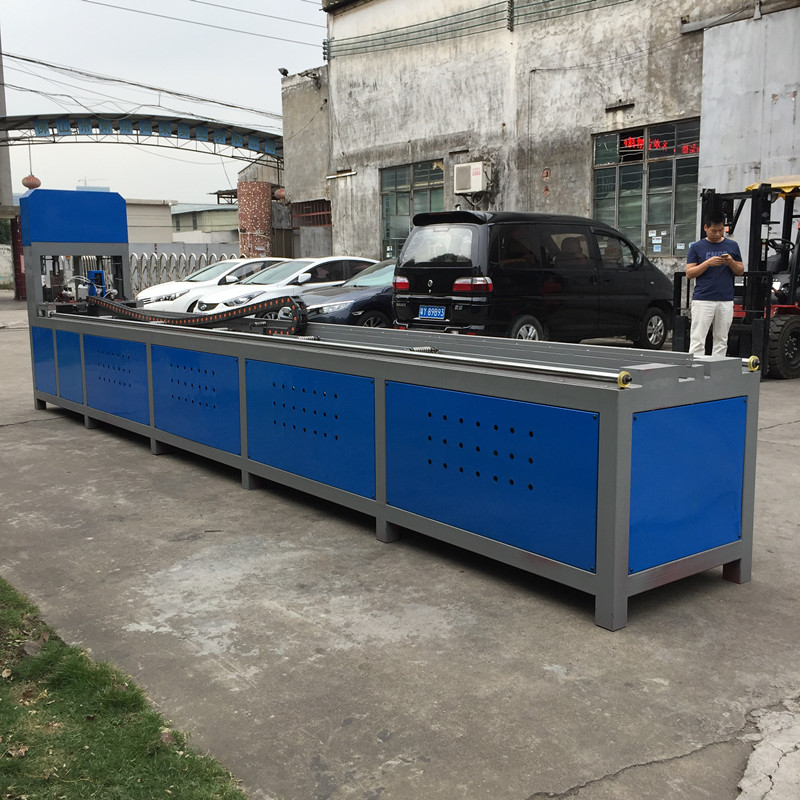

Machine display
