Log Sliding Table Saw

The equipment can break the log material into a plate evenly, and the saw pin surface can achieve a smooth and flat effect, which is very suitable for the processing of large-diameter logs.

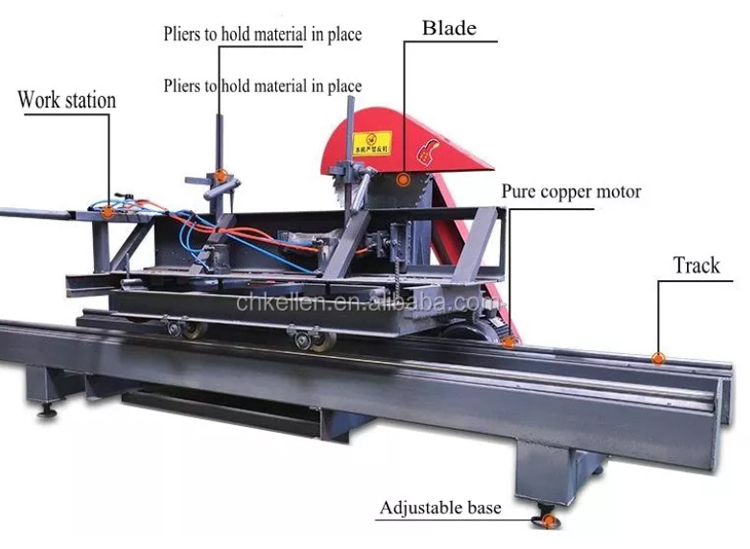

Log Sliding Table Saw

Product introduction

1. The round table sliding saw is a high-performance machine for the breaking and sharding of logs. It includes the band saw property and has more than 4 times the band saw machine.

2. In the process of processing with this equipment, a log can be sliced into three or our plates. There are two kinds of effects that can be achieved. One is to open a thick plate in the middle, the thin plates are on both sides, and the other is to open three or four thick plates in the middle.

3. The utilization rate of wood reaches a large size. And don't train, the operation is simple, and the work efficiency is high.

4. Mainly used for processing round wood, square wood, laminated timber, packing box, joinery, furniture board is the equipment for processing round wood.

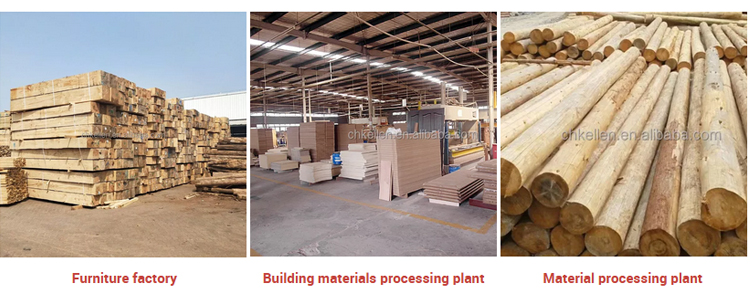

Applicable field
Apply to Wood processing plant or Furniture processing plant or Construction material site and so on.
It can cut round wood, board wood and other wood that needs to be sliced.
Features
1. A new upgraded version of the machine, with high precision, easy operation, and a mobile automatic sports car. It can saw various thickness flat, trapezoidal and triangular plates.
2. Professional Chinese and English manuals to strengthen users' understanding of this machine and use it safely.
3. This machine can be operated by two persons, one person can pick up the board, and one person can control various functions. With automatic parking device.
4. The host is equipped with two motors. The two motors can be used separately or at the same time. Please be careful not to start the motors at the same time when starting up, otherwise the power supply will be burned.

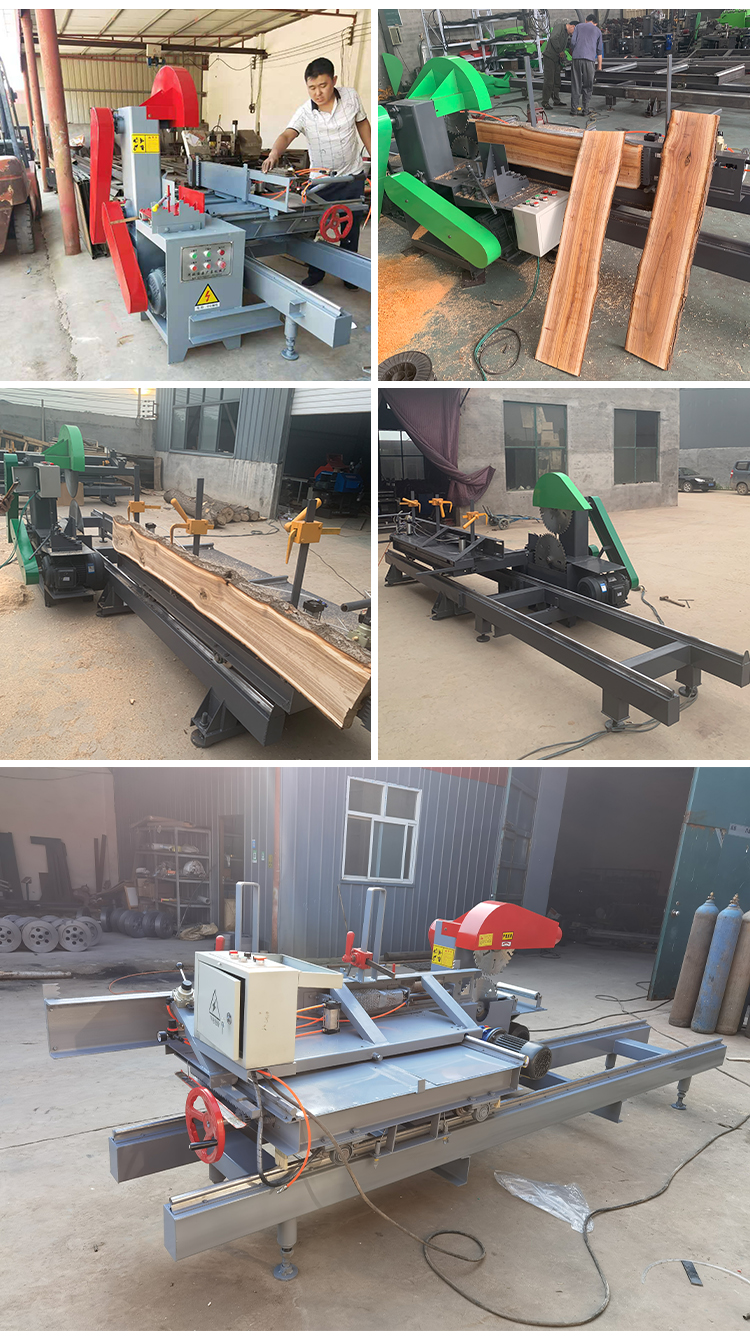

Machine display
Model KLY-300 KLY-400 KLY-500
Processing diameter 300mm 400mm 500mm
Power 7.5kw+7.5kw 7.5kw+11kw 11kw+11kw
Saw blade specifications 405*3.8*50 500*4.0*50 600*5.0*50
Processing length 1m (Length can be customized according to requirements)
Dimensions 2000*1600*1600mm
Voltage 380v (Can also use diesel as power)
Weight 800kg
Spindle speed 3800 rpm
Feeding speed 10m/min
