Honey refining machine is for honey and other heat-sensitive materials processing process requirements and design and manufacture of small concentration equipment. The equipment can achieve higher vacuum and lower concentration temperature, so it has little influence on the composition of the material after concentration, and the material quality is stable and the effect is very good. The equipment has the functions of preheating, filtration and vacuum concentration. The condensing system and vacuum system are specially designed, which can obtain higher vacuum degree and improve the production efficiency and effect. The enrichment equipment is widely used in medium and small bee products processing enterprises.
Process of dehumidifier machine for honey:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling
Features of dehumidifier machine for honey:
1. in order to adapt to different kinds material enrichment process conditions, the device heating can be electric, or steam heating; Thermal mass media can be water, heat conduction oil, or steam. Evaporation heat medium temperature is adjustable, adjustable wide temperature range(50~120℃). Especially to meet the requirements of evaporation and concentration technology of heat sensitive material.
2. in order to improve steam-liquid separation and capture the effect of the bubble, the separation of top add air filter foam layer.
3. in order to adapt to the use of different production, experimental sites, all the machine parts and each unit process piping connections for quick clamp, make scientific technological change is convenient, convenient maintenance and cleaning, and convenient to remove and manual handling.
4.in order to improve the production capacity of equipment, the heating equipment material using forced circulation form, and the heat transfer area and increase. Form of forced circulation pump adopts frequency control of motor speed, wide adaptability, high efficiency, energy saving effect.
5.separate jars set frame compression long sight glass and the glass lamp, visible material status at any time. Design of the whole machine is compact, cover an area of an area small, the main body of unit length, width, respectively, such as the parameters in the table of dimension "exterior" less 250 mm and 200 mm.
6.this equipment is the material heated boiling under low temperature, moisture evaporation, the evaporation of steam with the foam of effective ingredients in gas-liquid separator and traps are separated liquid reflux tank, so as not to waste.

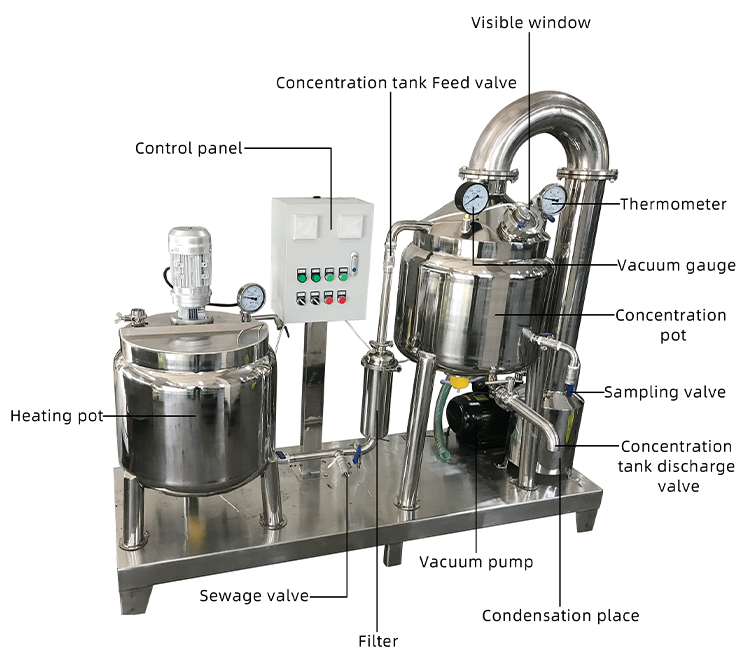

Product analysis

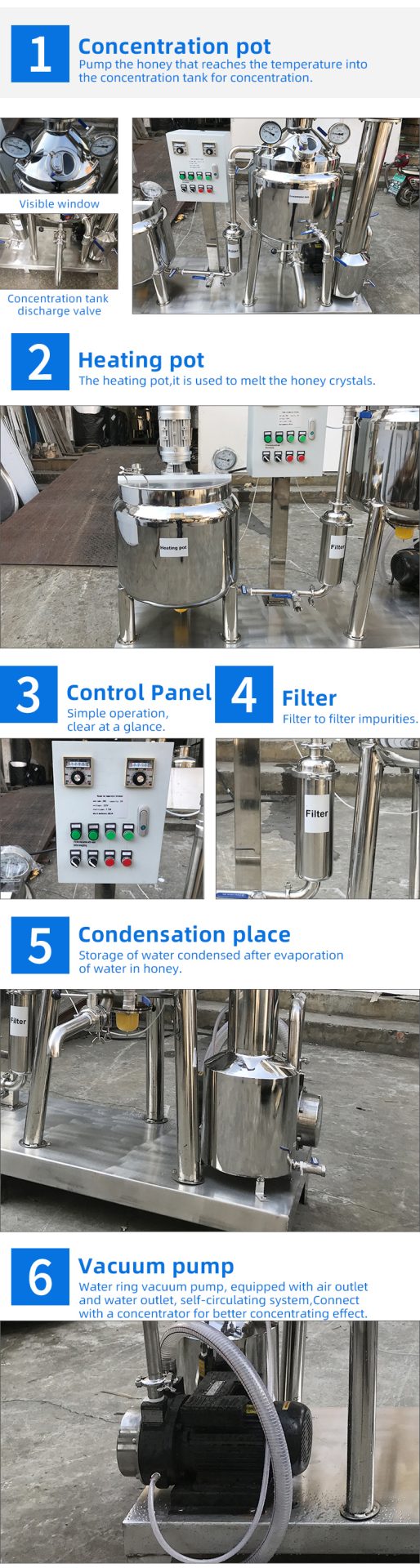

Product details

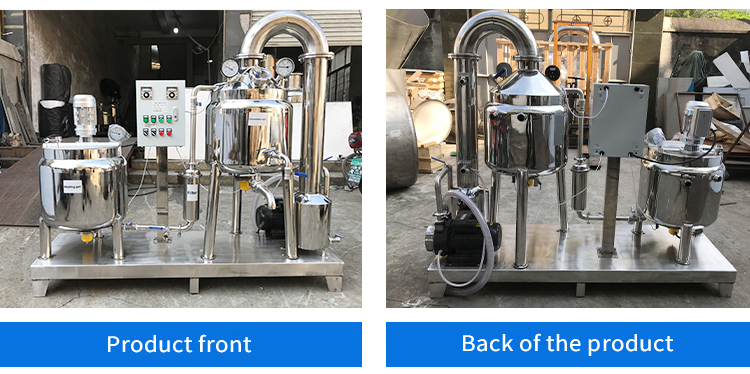

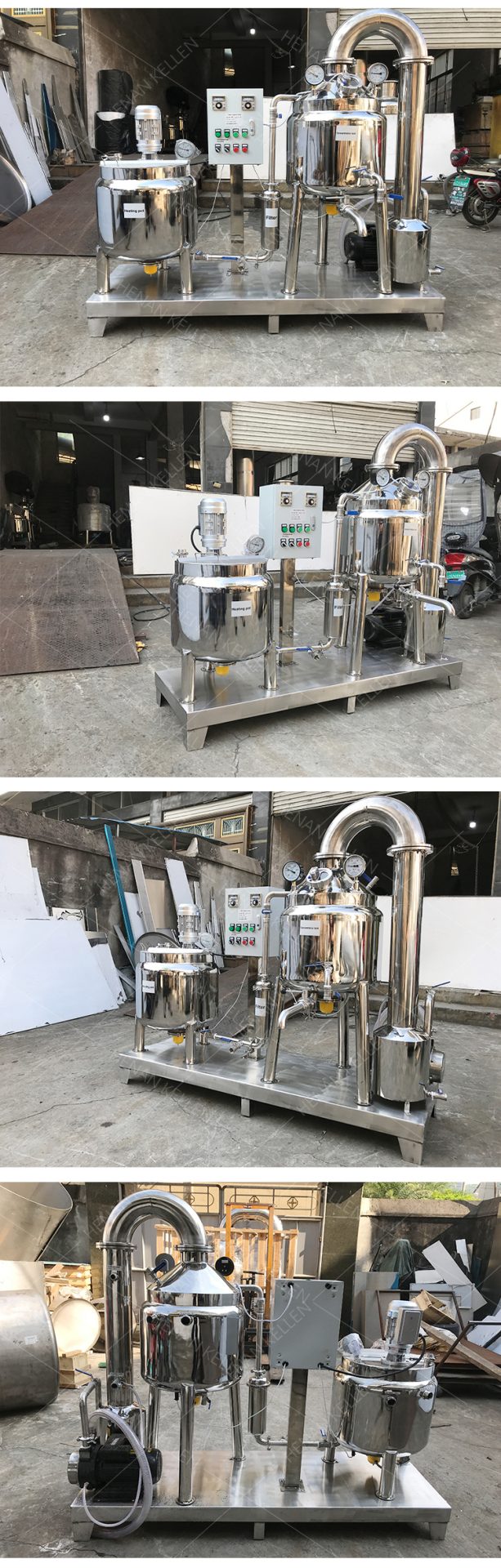

Product display
| Model | KL-ZDN50 | KL-ZDN100 | KL-ZDN200 | KL-ZDN300 | KL-ZDN400 |
| Capacity(ton/8H) | 0.5 | 1 | 2 | 3 | 4 |
| Production capacity is increased by 4 baume degrees per hour. | |||||
| Voltage（V） | 220 | 380 | 380 | 380 | 380 |
| Power（KW） | 9.5 | 16.35 | 26.75 | 32.95 | 4 |
| Power consumption（KW） | 6 | 13 | 22 | 28 | 4 |
| Concentrated temperature（℃） | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
| Vacuum（Mpa） | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 | ≥0.092 |
| Preheating tank capacity（L） | 50 | 100 | 200 | 300 | 400 |
| Concentration tank capacity（L） | 50 | 100 | 200 | 300 | 400 |
| Overall dimensions（M） | 1.8×0.6×1.7 | 2×0.7×1.9 | 2×0.8×2.1 | 2×0.86×2.3 | 2×0.86×2.4 |
