The fiber cut machine rotating twisted the knife fiber cutting machine(also known as rag,short cutting machine, cutting the line,rags block machine,rag machine,etc.).Native to the abolition of the traditional reciprocating straight knife board,the application of international leading oblique knob scroll meet the shear design of point moving knife and fixed knife,continuous high-speed shear
Apply to
Fiber cutter cuts old cloth, model, cotton, fiberglass, leather, carton, paper, non-woven, linen, denim, textile, plastic, hemp, sisal, kenaf, nylon, polyester, sponge, Hang tags, phenolic boards, gypsum boards, etc., various soft materials
Finished product display

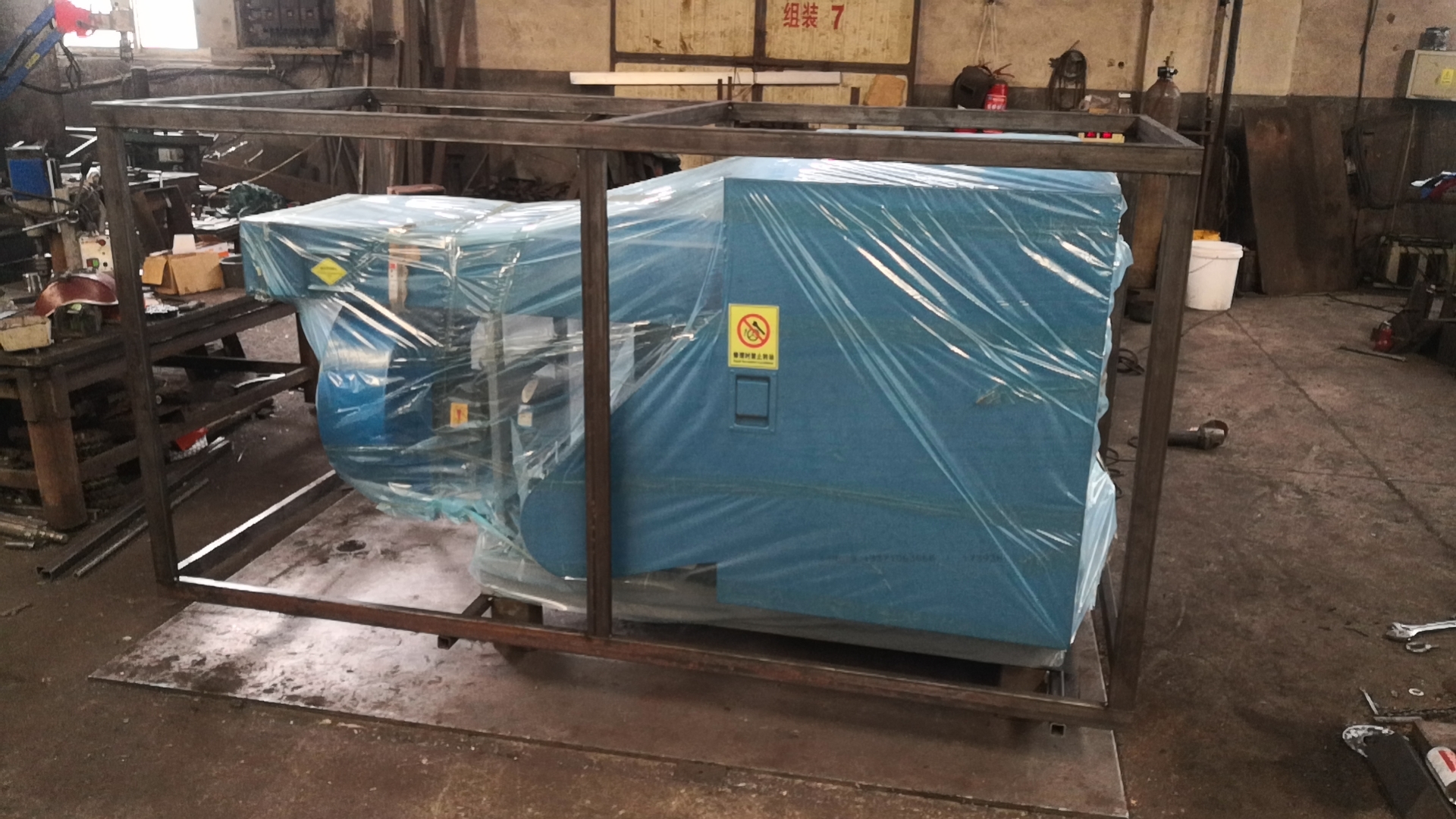

Machine display
Model | HY-900 | HY-950 | HY-1200 | HY-1600 | HY-2000 |
Power | 5.5+1.5KW | 11+1.5+3KW | 7.5+1.5KW | 15+2.2+1.1KW | 15+2.2KW+1.5KW |
Capacity | 200-600kg/h | 100-800kg/h | 600-1200kg/h | 1000-2000kg/h | 1000-2000kg/h |
cut size | 3-75mm | 2-50mm | 1-50mm | 5-150mm | 10-100mm |
rotary blade | 1-6 pcs | 1-6 pcs | 1-6 pcs | 1-6 pcs | 1-6 pcs |
stator blade | 1pcs | 2pcs | 1pcs | 1pcs | 1pcs |
size | 320*100*115cm | 320*100*115cm | 400*120*125cm | 620*160*150cm | 6500*170*150cm |
weight | 800KG | 1000KG | 1300KG | 1800KG | 2000KG |
