Our pig farm farrowing crate is especially designed for sow's farrowing and lactating. It's role is to control the sow free area and lie down, set sows middle of a frame is blocked, and avoid the piglets were killed, crushed to death, and crushed. Limit shelf above the bottom rail of a welding have bent column, to protect the piglets, without affecting the sucking piglets. Excellent fence and pen surface design ensure clean and warm farrowing environment, reduce sows and piglets' diseases and increase piglet survival rate.
Product Advantage
1.clean environment, delivery sow postpartum recovery faster, more can give full play to the production potential of pigs;
2.to facilitate the management of sows and piglets;
3.can protect the piglets, put a check by the sow killed;
4.can provide good health conditions, can prevent the living stockpile and bacteria breeding, reduce piglet disease;
5.can provide a healthy and comfortable environment for newborn piglets and safety activity space;
6.reduce farmers in spending on energy and economy, increasing economic income.
7.And increase the survival rate of piglets.
Introduce
Product Analysis
Effect display

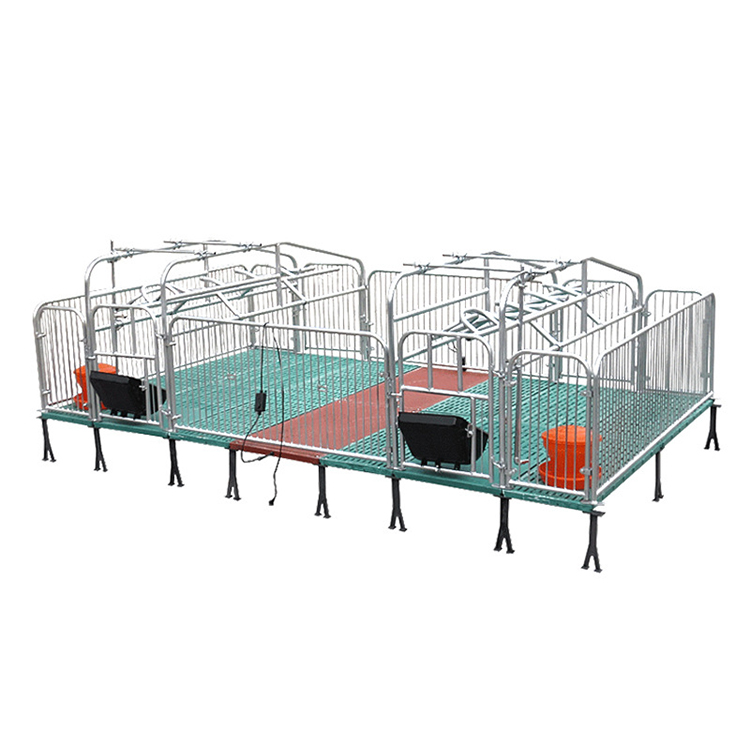

Product display

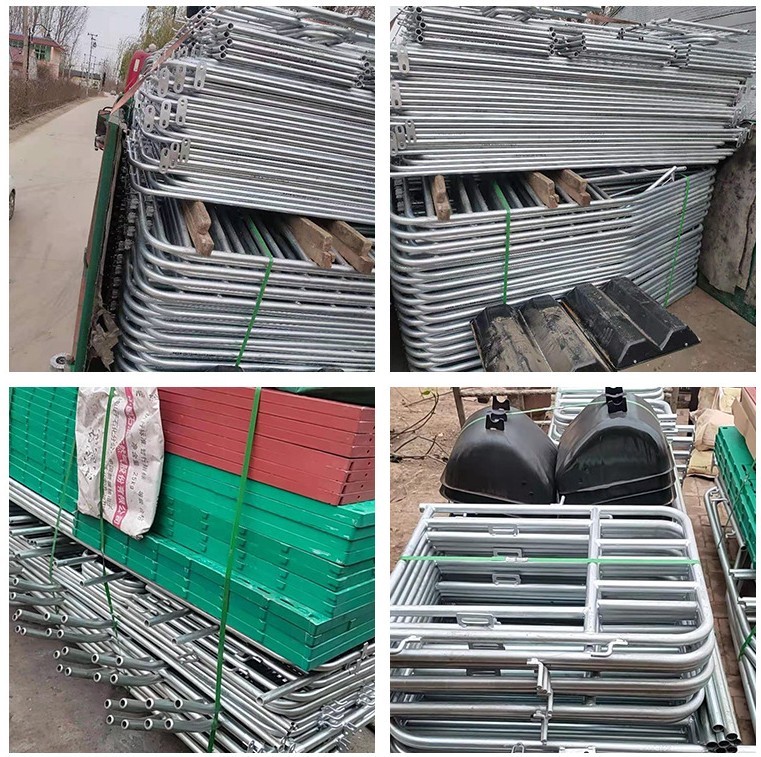

Inventory display
Installation steps
1. Foot positioning, installation of leaking manure board and electric heating board
2. Main frame positioning
3. Side fence, front and rear doors and trough installation
4. Installation of incubator
5. Intermediate fence installation
6. Insulation box cover installation

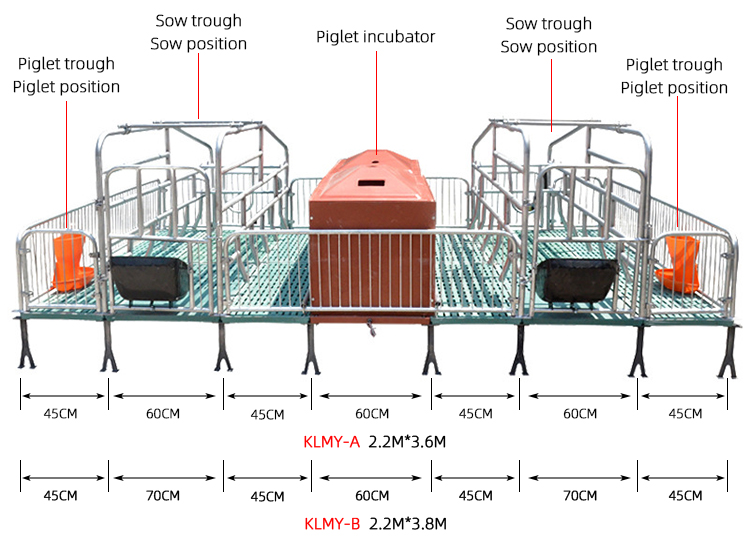

| Model | Total size | Sow bed width |
| KLMY-A | 2.2*3.6m | 60cm |
| KLMY-B | 2.2*3.8m | 70cm |
| Equipment list 2 half-drained sow plates 2 pieces of fully drained sow plate 8 pieces of piggy leakage board 2 composite electric heating plates Incubator 2 Thickened delivery bed legs 24 4 sow side fences 8 piggy fences 2 sow front doors 2 sow back doors 2 pieces of anti-pressure doors 4 sow rails 2 sow troughs 2 pig troughs Complete set of matching screws |
||
