Emulsifying Dispersing Machine

The dispersing machine is mainly for crushing, dispersing, emulsifying and mixing liquid raw materials of different viscosities. Through the high-speed operation of the upper and lower teeth of the dispersing plate, the new high-efficiency mixing equipment can carry out high-speed strong shearing, impacting, crushing, Dispersion, to achieve the functions of rapid mixing, dissolving, dispersing and refining. It is an efficient equipment for stirring, dispersing and dissolving solids such as coatings.

Send Inquiry→ Chat Now

Product Details
Technical Parameters

Working principle

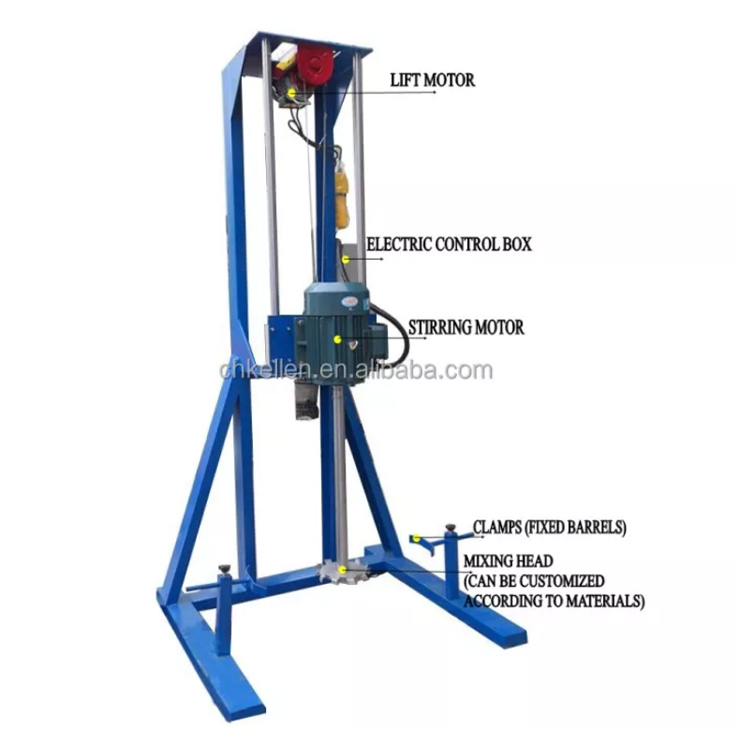

The main working part is the impeller, which is driven by the high-speed rotating dispersing shaft. The high-speed rotation of the impeller makes the slurry in the stirring tank present a rolling circulation and generates a large vortex.

Pigment particles on the top surface of the paint quickly spiral down to the bottom of the vortex. A turbulent zone is formed 2.5 to 5 cm from the edge of the impeller. In this area, the pigment particles are subjected to strong shear and impact, which make them disperse into the paint quickly. Outside this area, the upper and lower streams are formed, so that the paint slurry can be fully circulated and turned.

If there is a laminar flow under the impeller, the interaction between the liquid layers at different speeds is called the action of viscosity shear force, which can play a good dispersion effect.

Product application

Products are used in coatings, coatings, inks, papermaking, agriculture, dyes, adhesives, food, printing and dyeing, non-metallic minerals and other industries.

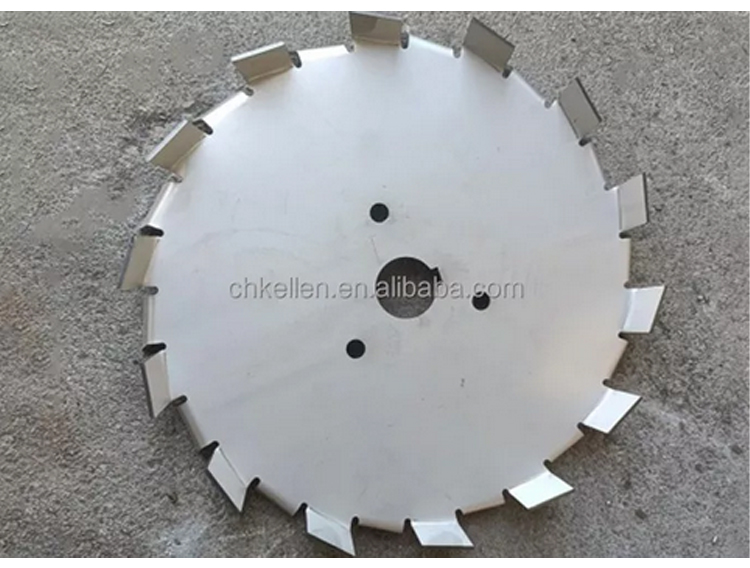

Mixing blade display

Stainless steel mixing blades, various types of blades can be designed according to customer requirements.

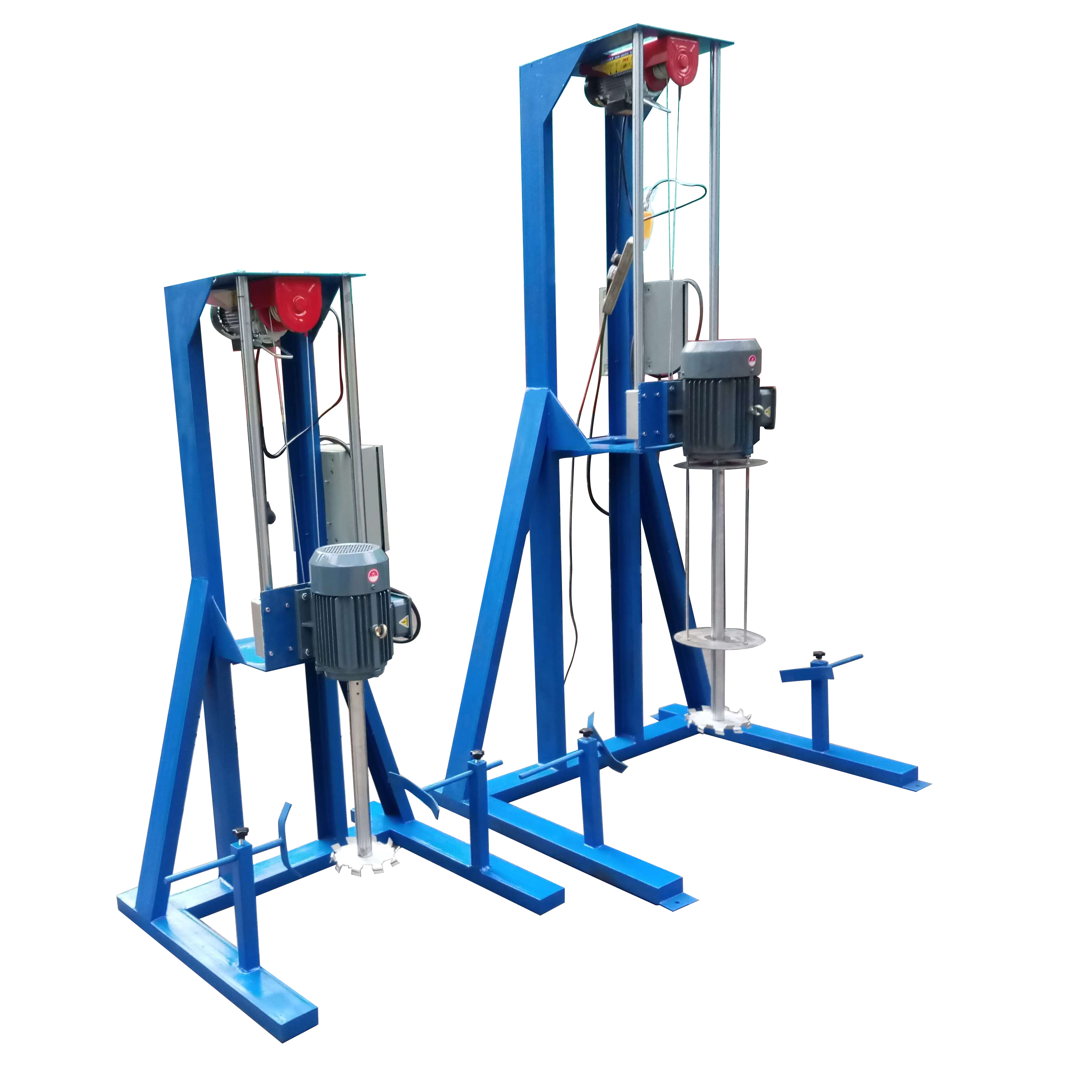

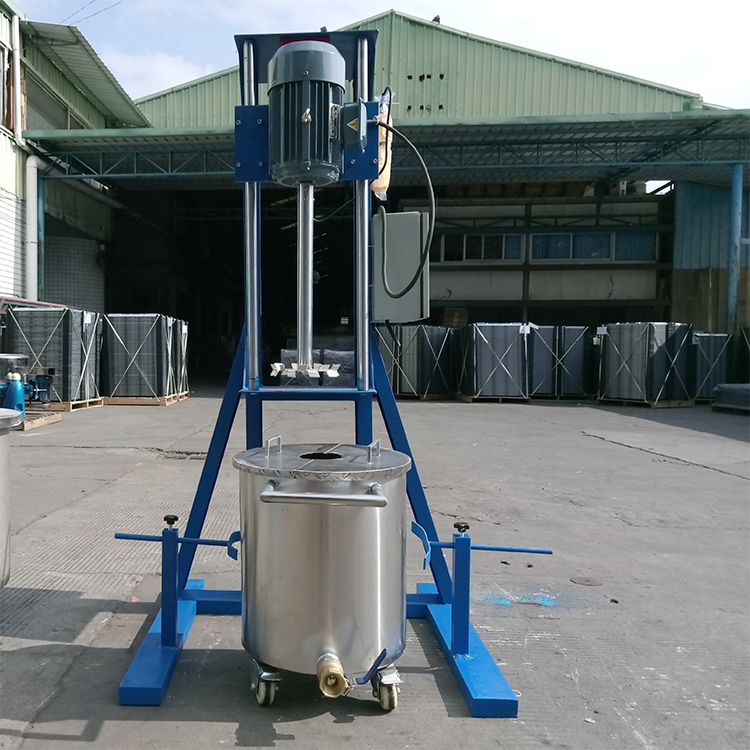

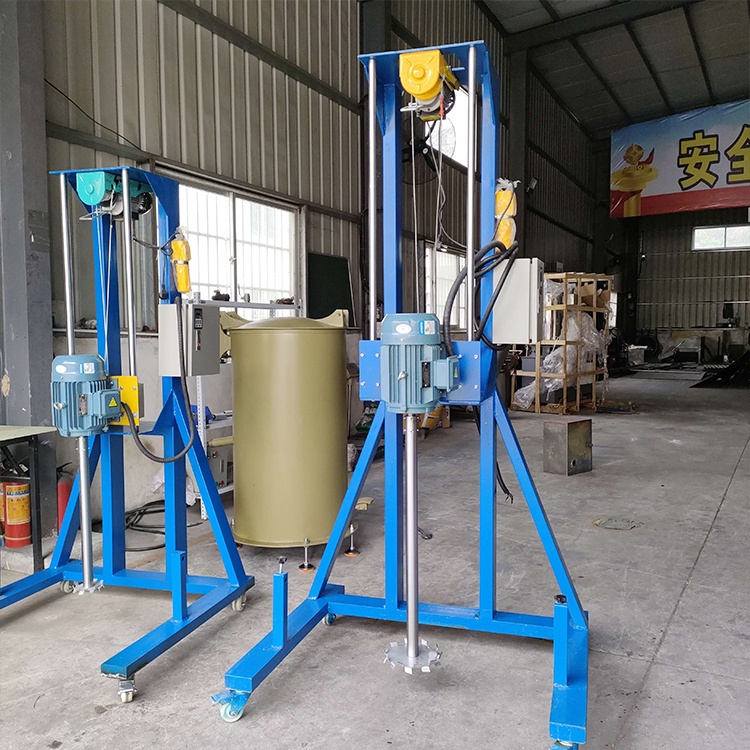

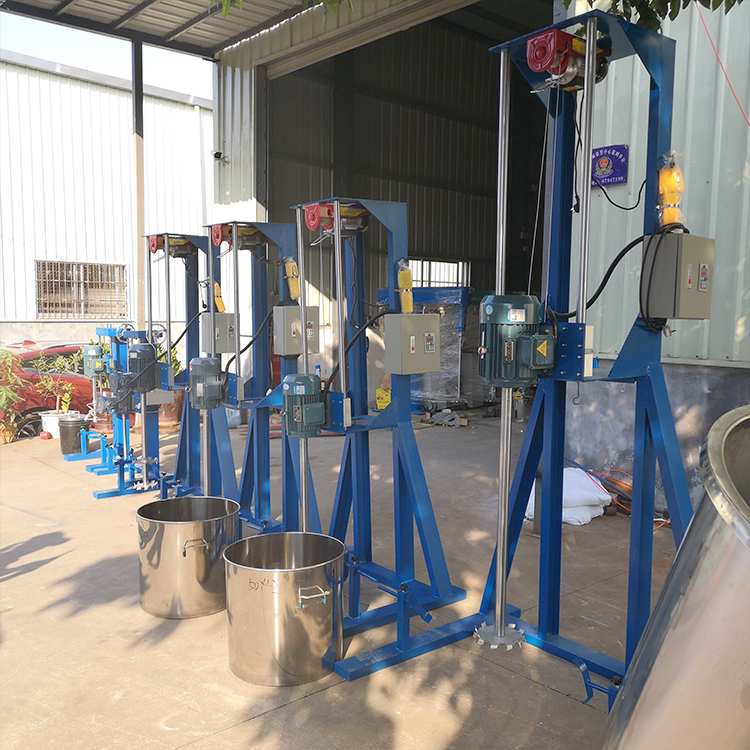

Product display

We have many models, please send us an inquiry, we will recommend the most suitable machine for you.

← Wax Melting Tank

Candle Soap Melt Blender →

Model	KL-BT-300
Main motor	3 kw
Speed category	Variable speed (multi-speed)
Speed adjustable range	0-1440 r/min
Stroke height of stirring shaft	0-900 mm
Dimensions	10008601850mm
Weight of machine	300 kg
Capacity of tank	300 L
Color	Customization
We have many models, please send us an inquiry, we will recommend the most suitable machine for you.
