This machine adopts all-steel welded structure, brake type lower transmission principle, integration of motor and cycloid reducer, self-contained brake device, chain transmission, no cutting and no power consumption, simple structure, simple operation, low energy consumption, It is suitable for the processing and cutting of 0.1-4mm steel plate. This machine tool adopts 6CRW2SI high alloy tool steel.
Features:
1.The use of all-copper motor drives has low failure rate and low power consumption.
2.The transmission adopts a foot switch to control and follow the step, which is simple and efficient.
3.The blade of the shearing machine is made of forged high chromium steel, with edges on all sides.
4.The whole machine adopts collective steel plate welding, thick and beautiful, with good stability.
5.Optimized cutting drive design, convenient for cutting board.
Product applicable
It can be used to cut iron plates, stainless steel plates, aluminum plates, copper plates, wooden boards,
plastic boards, diamond nets, asbestos, leather, etc.

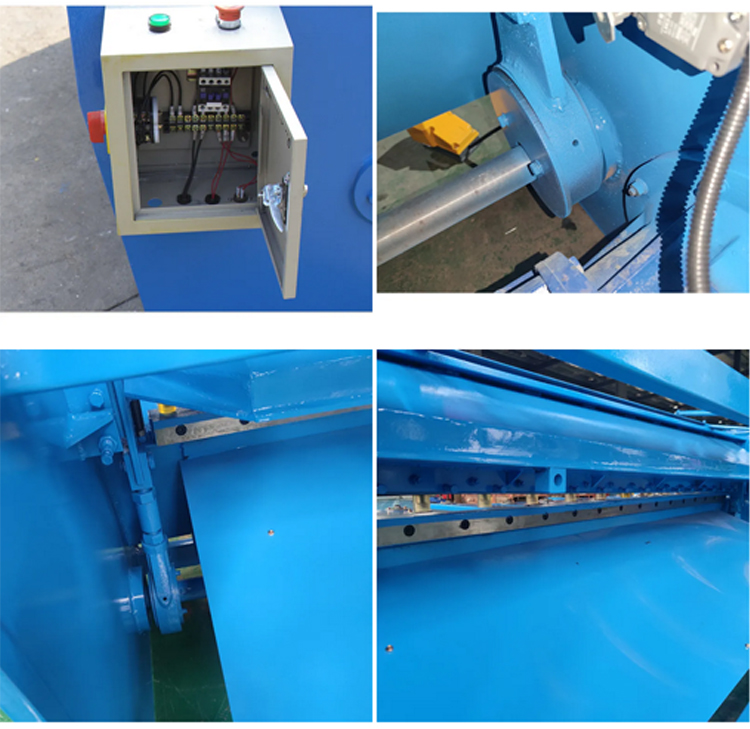

Detail picture

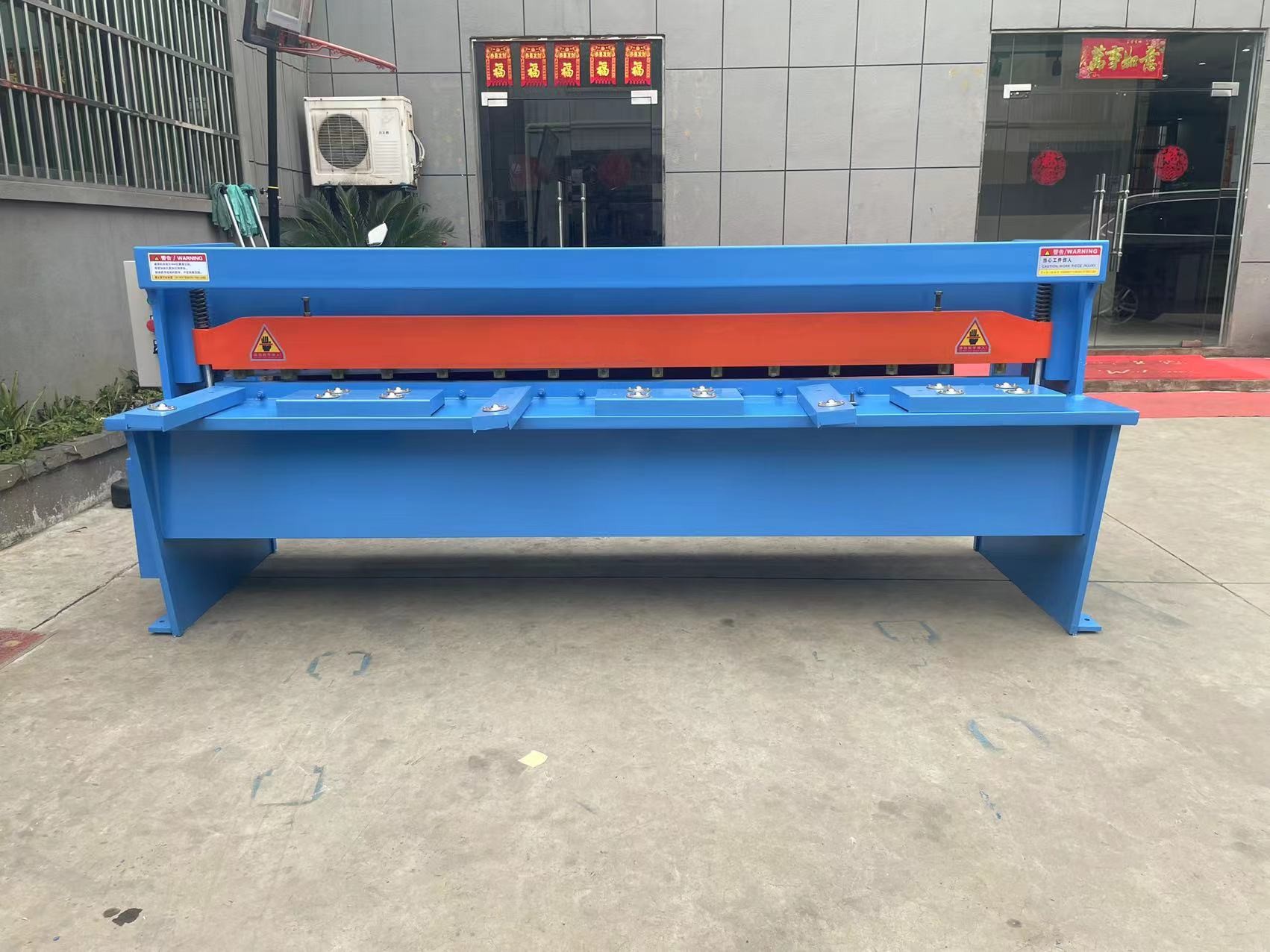

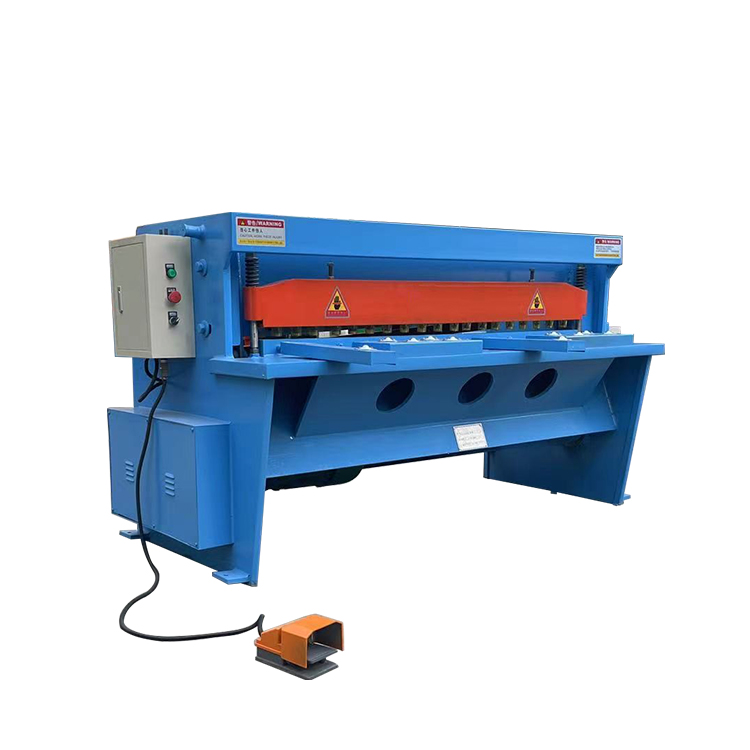

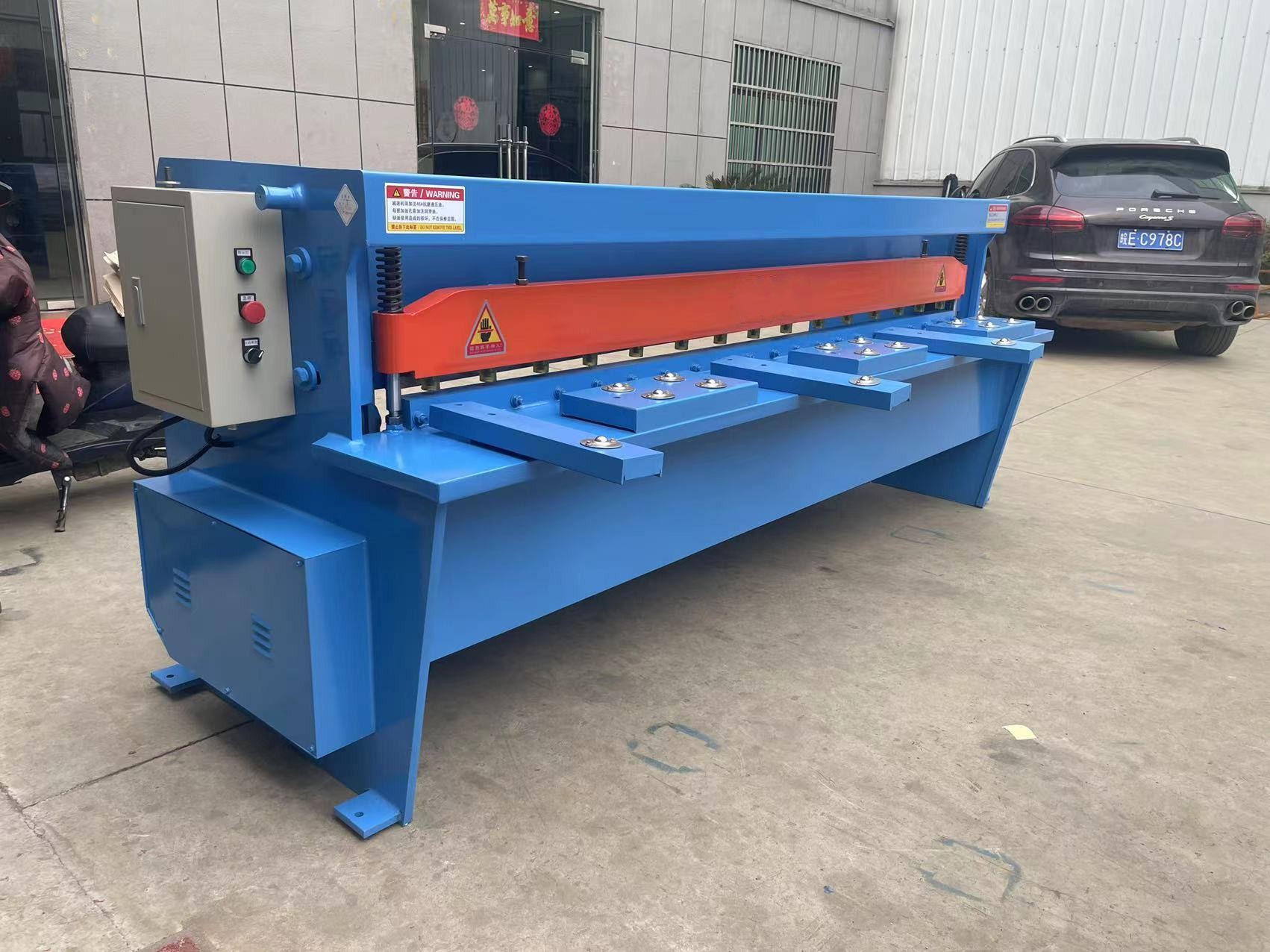

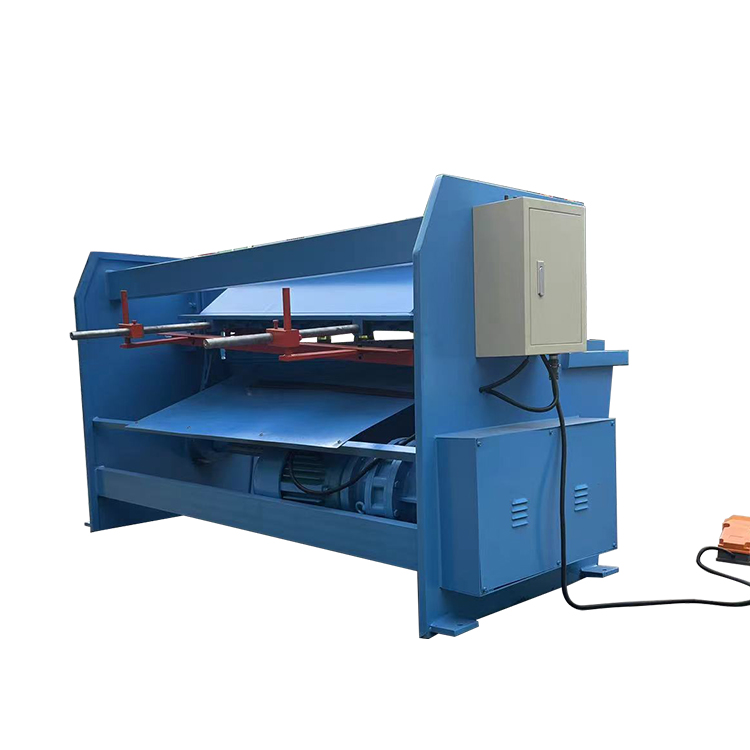

Product real shot display
| Model | Cutting
thickness（mm） |
Cutting
width （mm） |
Cutting angle
（°） |
Cutting speed
(times/min) |
Backgauge
range(mm) |
Motor power (kw) | Dimensions
(mm) |
| KL-3×1300 | 3 | 1300 | 2°14‘ | 33 | 500 | 4.5 | 1900×1050×1150 |
| KL-3×1500 | 3 | 1500 | 2°14‘ | 33 | 500 | 4.5 | 2100×1050×1150 |
| KL-3×1600 | 3 | 1600 | 2°14‘ | 33 | 500 | 4.5 | 2200×1050×1150 |
| KL-3×2000 | 3 | 2000 | 2°14‘ | 33 | 500 | 5.5 | 2600×1050×1150 |
| KL-3×2500 | 3 | 2500 | 2°14‘ | 30 | 500 | 5.5 | 3100×1050×1150 |
| KL-4×1300 | 4 | 1300 | 2°14‘ | 30 | 500 | 5.5 | 1900×1050×1150 |
| KL-4×1500 | 4 | 1500 | 2°14‘ | 30 | 500 | 5.5 | 2100×1050×1150 |
| KL-4×1600 | 4 | 1600 | 2°14‘ | 30 | 500 | 5.5 | 2200×1050×1150 |
| KL-4×2000 | 4 | 2000 | 2°14‘ | 28 | 500 | 7.5 | 2600×1050×1250 |
| KL-4×2500 | 4 | 2500 | 2°14‘ | 28 | 500 | 7.5 | 3100×1050×1250 |
| KL-2×2000 | 2 | 2000 | 2°14‘ | 33 | 500 | 4.5 | 2600×1050×1150 |
| KL-2×2500 | 2 | 2500 | 2°14‘ | 30 | 500 | 4.5 | 3100×1050×1150 |
| KL-6×1300 | 6 | 1300 | 2°14‘ | 28 | 500 | 5.5 | 1900×1050×1250 |
| KL-6×1600 | 6 | 1600 | 2°14‘ | 28 | 500 | 7.5 | 2200×1050×1250 |
