Chalk Machine

Product introduction

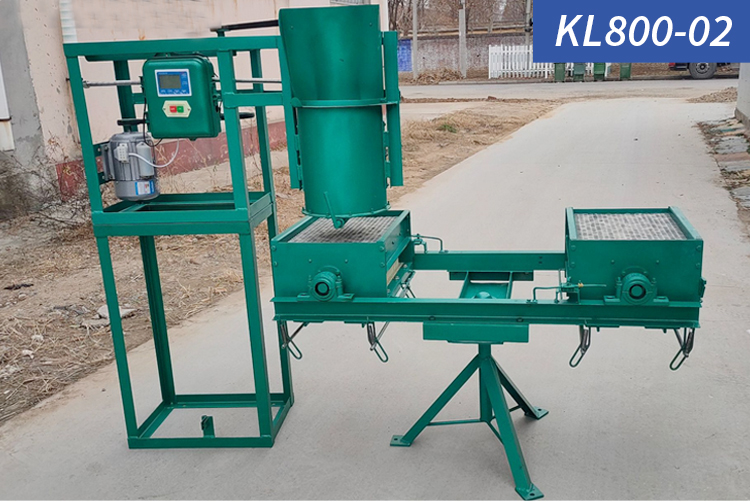

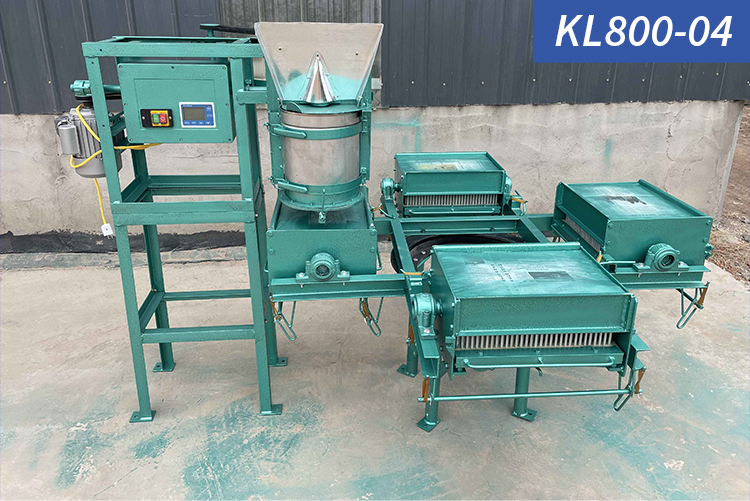

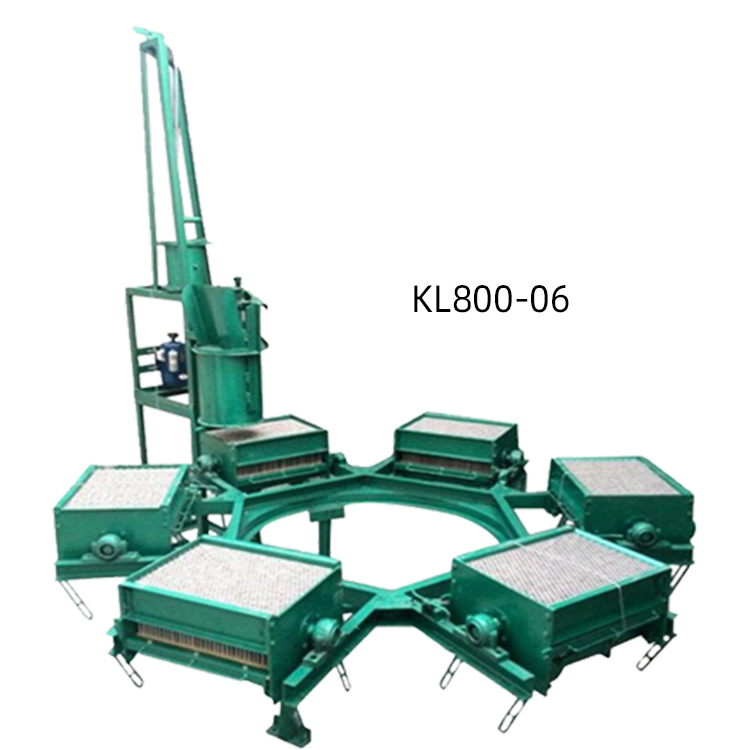

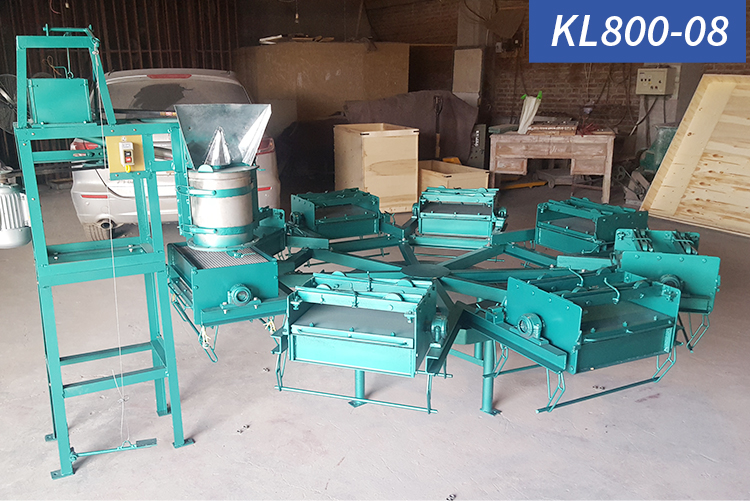

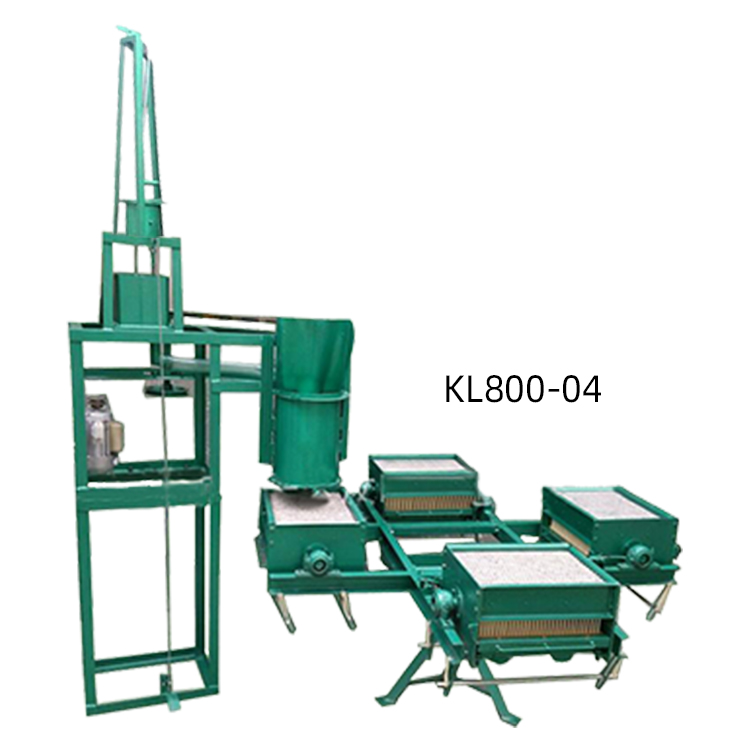

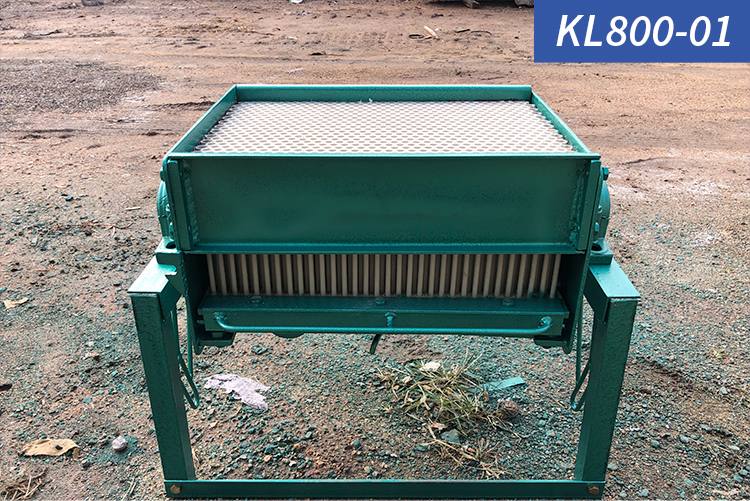

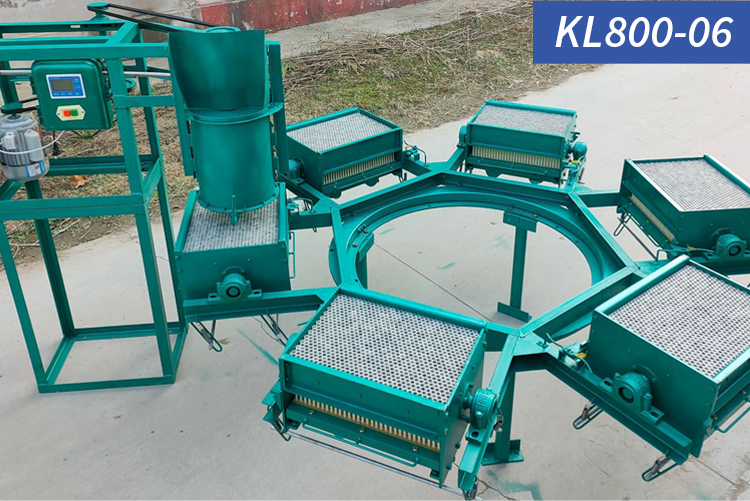

1. There are 5 models of this machine, all of which are equipped with a stirring device except the single model.
2. The single mode does not have a chalk slot, it needs to be purchased extra, 60 yuan a piece.
3. In addition to the commonly used chalk size, it needs to be customized, plus 200 yuan mold fee, and the delivery time is 5-7 working days.
4. The dryer takes about 8-10 hours, and it takes 1-2 days to dry naturally in summer.
5. The single mold molding time takes about 5-6 minutes.
6. Material of chalk machine mold: ABS
7. What lubricates the chalk machine: 90% diesel oil + 10% peanut oil.
8. The ratio of water and gypsum powder is: 1:1.
9. When the pedal switch controls the first bucket to discharge water, the water will be automatically connected to the water pipe.
10. The second bucket is used to add gypsum powder. The mixing bucket needs to be flushed with water for a period of time. If there is too much gypsum in the bucket, we are equipped with a shovel. Use the shovel to clean it, and the switch has a hook to clean it.
11. The mold does not need to be cleaned if it is used normally, but the mixing tank needs to be cleaned.
12.2 molds and above are manually turned moulds. Just one push.
13. An 800 mold needs 3kg of plaster.

Mold

Each mold 800, there are introduced, disposable the mold. Chalk shape of round, square, hexagonal, and other chalk thick, thin, long, short, it can also be customized according to the user.

Features
1. Greatly reduces the worker labor intensity, greatly improve work efficiency.
2. Raw material consumption will be reduced by more than 30%, the product rate is raised to 99%.
3. Each model has 800 spaces for the filling, each cycle will be need 2-10 minutes.
4. Greatly improve the product quality, production of chalk is bright and clean and beautiful.
5. Chalk shapes such as round, square, hexagon, chalk, thick, thin, long, short, also can be customized according to user's need.

Instructions

Step 1. Put the prepared gypsum slurry into the mold.

Step 2. Scrape slowly with a scraper to scrape out the remaining gypsum slurry.

Step 3. The gypum slurry will solidified in about 5-6 minutes.

Step 4. When the mold is ejected, turn the mold switch on the mold frame by hand, turn the mold over, place the chalk tray on the iron rod of the mold frame, and then pull the cam handle forcefully to make the ejector push the chalk out and fall into the pen tray.

Step 5. Take out the chalk tray and place it in the sun to dry it. Dry for 1-2 days at summer temperature.

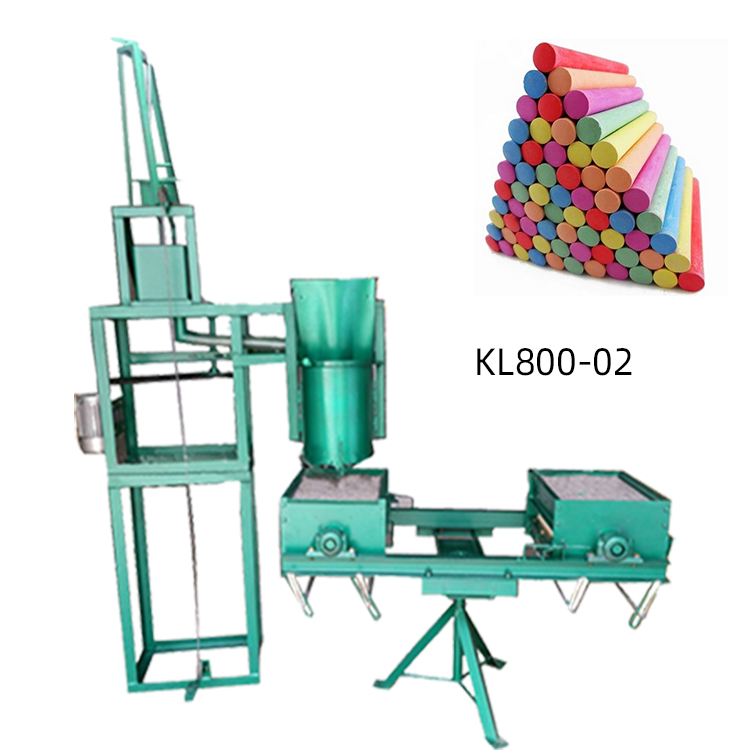

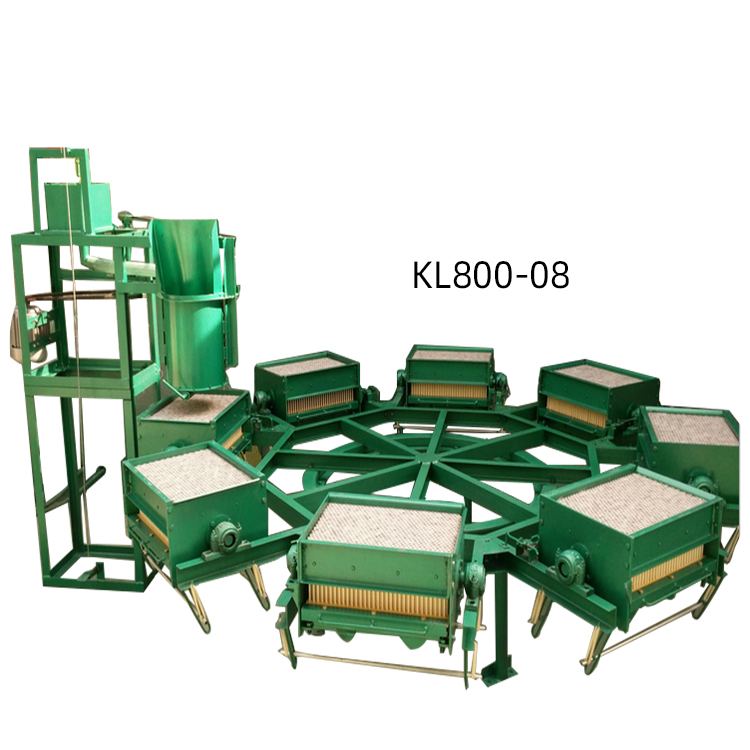

Picture real shot display
