Automatic cashew nut shelling machine

It is mainly used for shelling cashew nuts. The equipment has the characteristics of stable operation, low material damage rate and high shelling efficiency. The graded cashew nuts are shelled, and the shelling rate and whole kernel rate of cashew nuts can reach 95%. The equipment divides the material into each guide groove through the material distribution device on the hopper, and the motor drives the attached plate on the chain to move it towards the direction of the knife body to realize cutting.

Automatic cashew nut shelling machine

Features
1. Labor saving: Compared with manual cashew shelling, it saves manpower and has higher efficiency. For example, the equipment with 6 knives can process about 150kg of materials per hour.
2. High rate of whole kernels: After grading cashew nuts are shelled, the shelling rate of cashew nuts can reach 95%.
3. High shelling efficiency: the equipment is driven by a motor chain, and the material moves toward the cutter body by driving the chain attachment plate. Since the material is distributed in the guide groove, each material needs to be cut by the cutter, and the performance is relatively stable. , can customize 6, 8, and 10 knives equipment according to different production requirements.
4. Convenient and simple adjustment: the equipment can be used for materials of different sizes. According to the size of cashew nuts, the distance between the upper and lower clamping cutters can be easily adjusted through the screw to improve the shelling effect and reduce the kernel breaking rate.
5. Simple maintenance: The equipment mechanism is simple and exquisite, safe and reliable, and easy to operate and maintain.

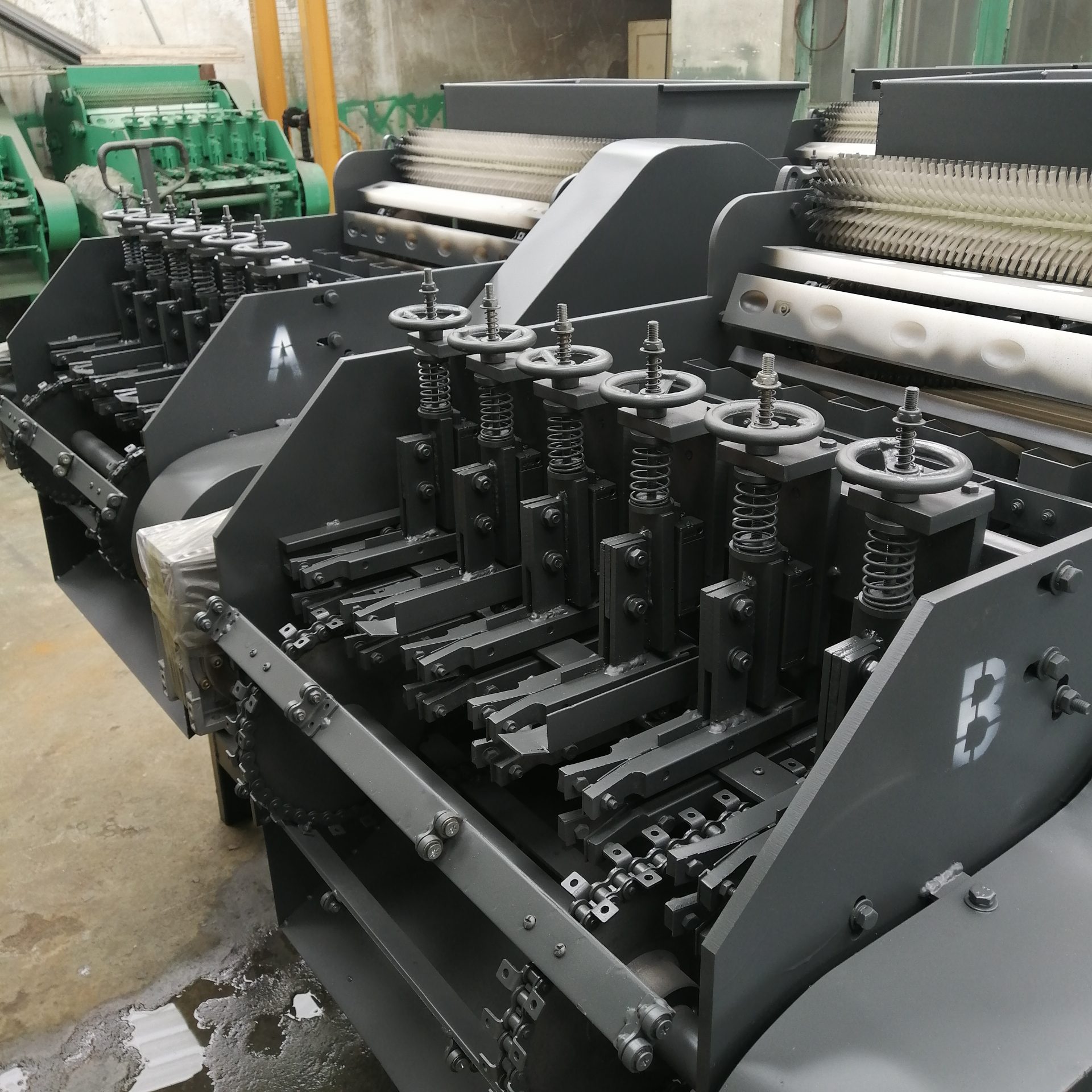

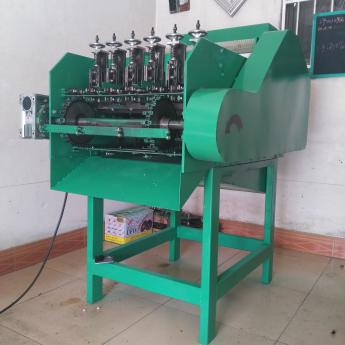

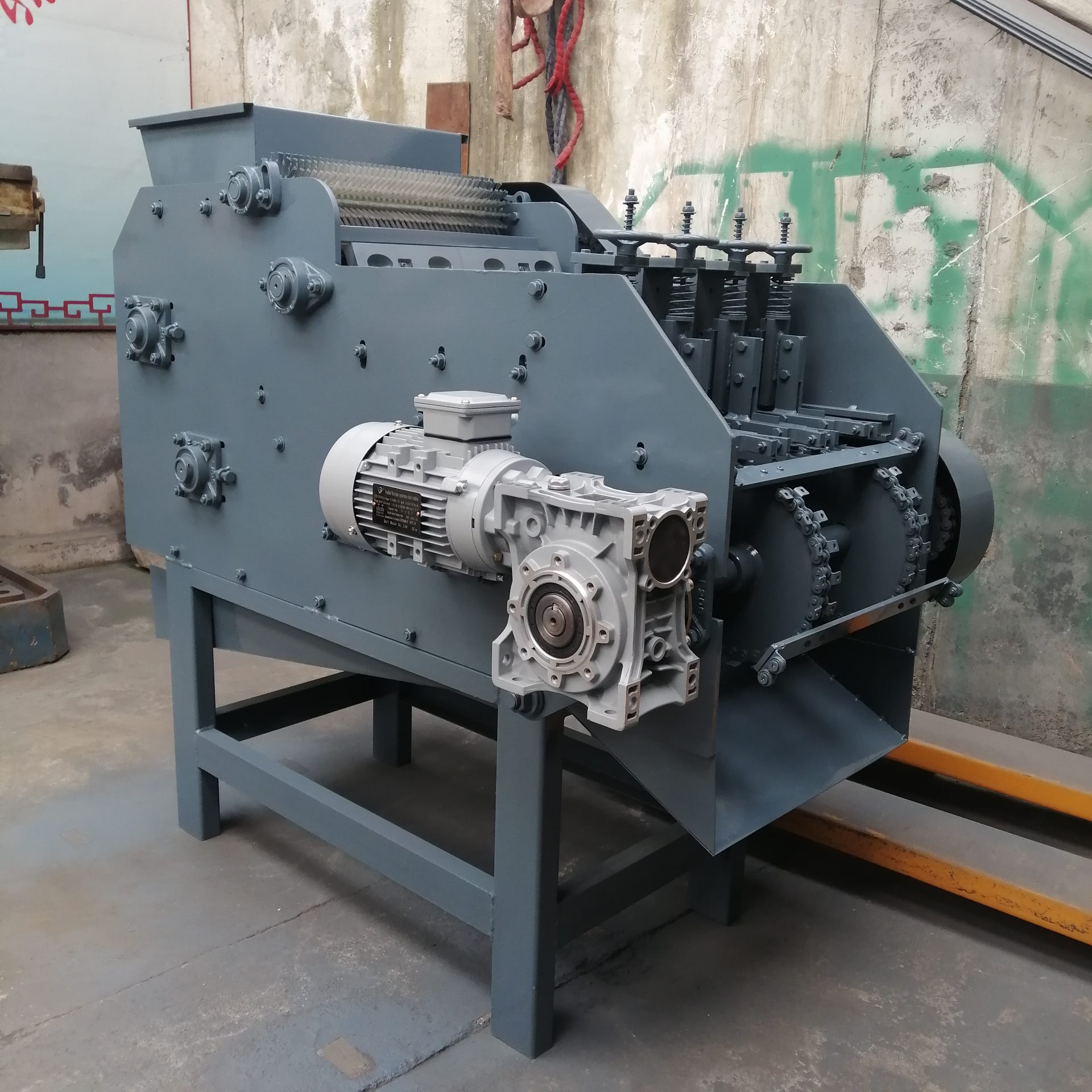

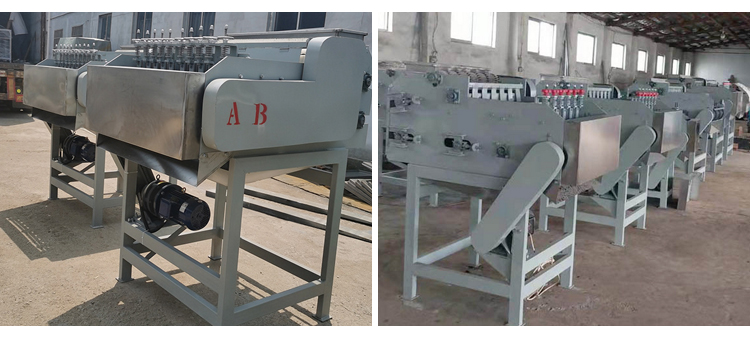

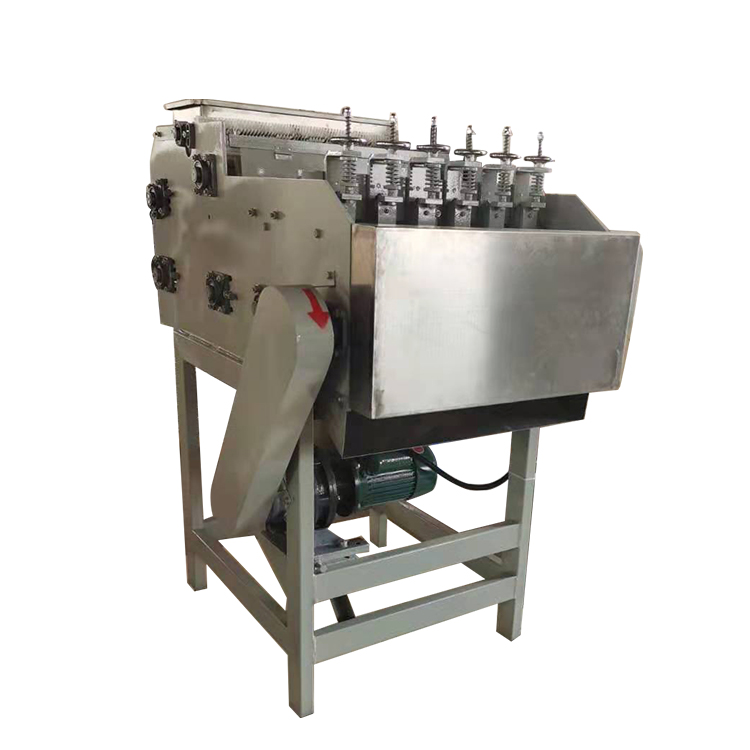

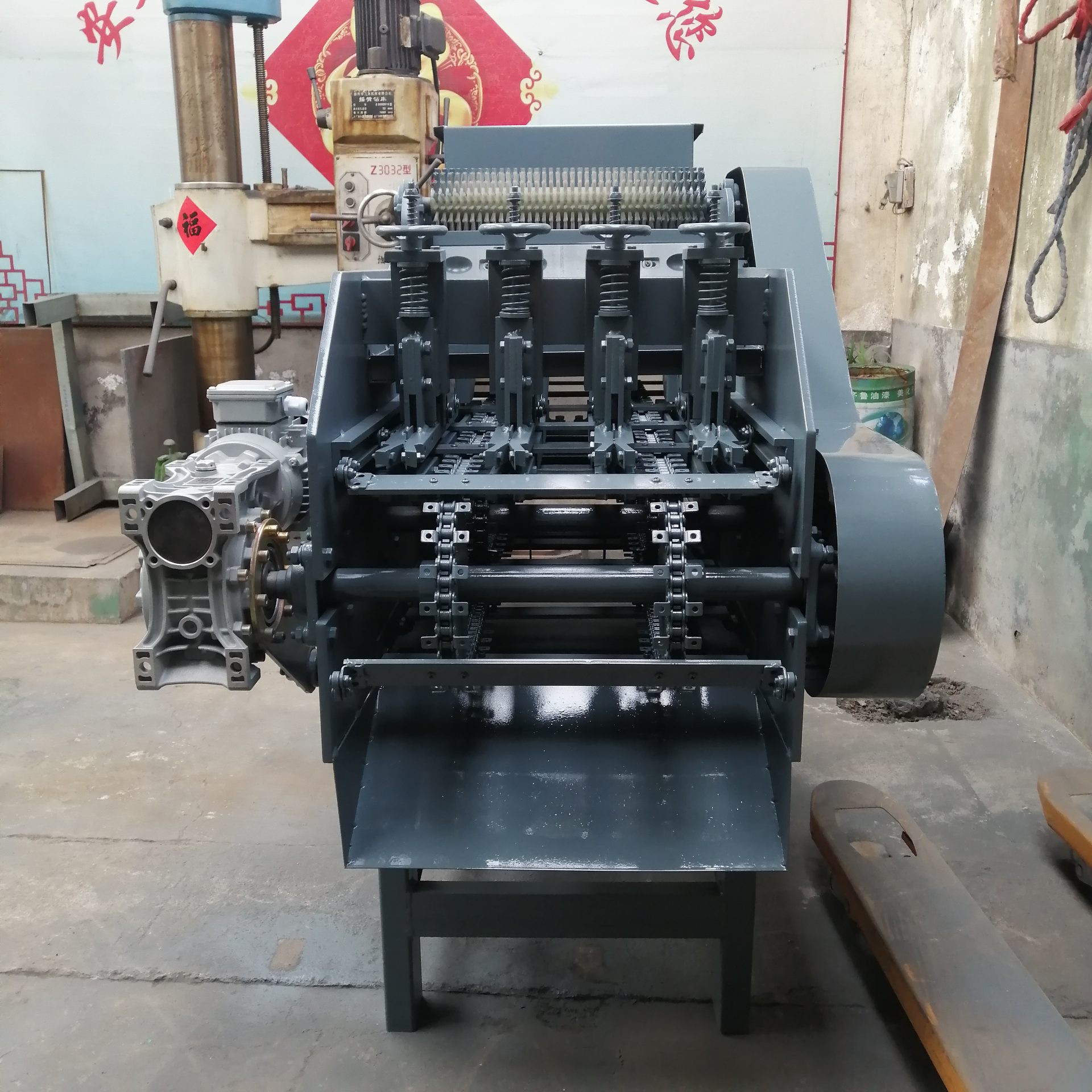

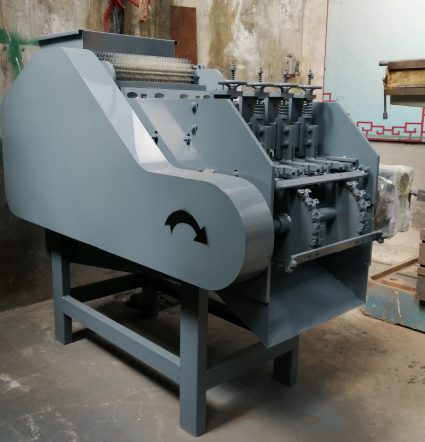

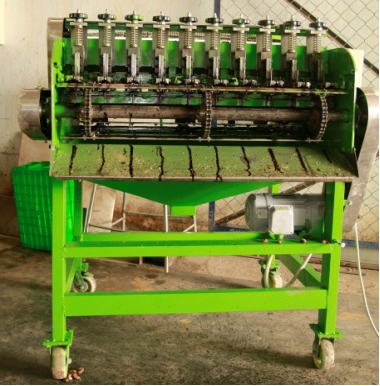

Machine display







Note:
There are many models of this device, this page only shows one model, please consult customer service for other product parameters.

Model HCS-200

10 knife position

HCS-100

6 knife position

HCS-60

4 knife position

Dimensions 1.38×1.32×1.55m 1.38×1.1×1.55m 1.38×0.9×1.25m
Weight 560Kg 460Kg 320Kg
Output 150-200Kg\h 100-120Kg\h 60-70Kg\h
Power 1.1kw 0.75kw 0.75kw
Voltage 380V 50HZ 380V 50HZ 380V 50HZ
Shelling rate 90-98% 90-98% 90-98%
Unopened rate  2% 2% 2%
Broken rate less than 5% less than 5% less than 5%
