This Automatic Plastering Machine Cement / Wall Spray Plastering Machine / Wall Plastering Machine is used for plastering the vertical walls of residential buildings and office buildings.
Video display
Product introduction
1. The adhesive strength of this product is stronger than that of manual labor, and it has a slurry extraction function during the production process. Three people can paint 1,000 square meters of walls in one day.
2. There is no floor ash, saving water and materials, saving about 25%-30% of ash than manual work, and reducing the cost of painting by about 30%.
3. The verticality and flatness are smaller than manual errors, which rewrites the new national standard, reduces the labor intensity of craftsmen, and greatly improves work efficiency.
4. The speed is fast, the project date is greatly shortened, and all the engineering treatments have reached the optimization project.
5. Using one powder wall machine can support 20 craftsmen to work without scaffolding, saving the cost of construction shelves. Small size, light weight, easy to operate.
Applicable wall
Include cement walls, brick-concrete walls, hollow walls, light brick walls, and non-burnt brick walls.
Applicable ash
Includes: white sand ash, stone powder, cement ash, foamed mortar, dry powder mortar, gypsum, etc. It can be used for plastering thickness below 3cm and plastering height below 5m.

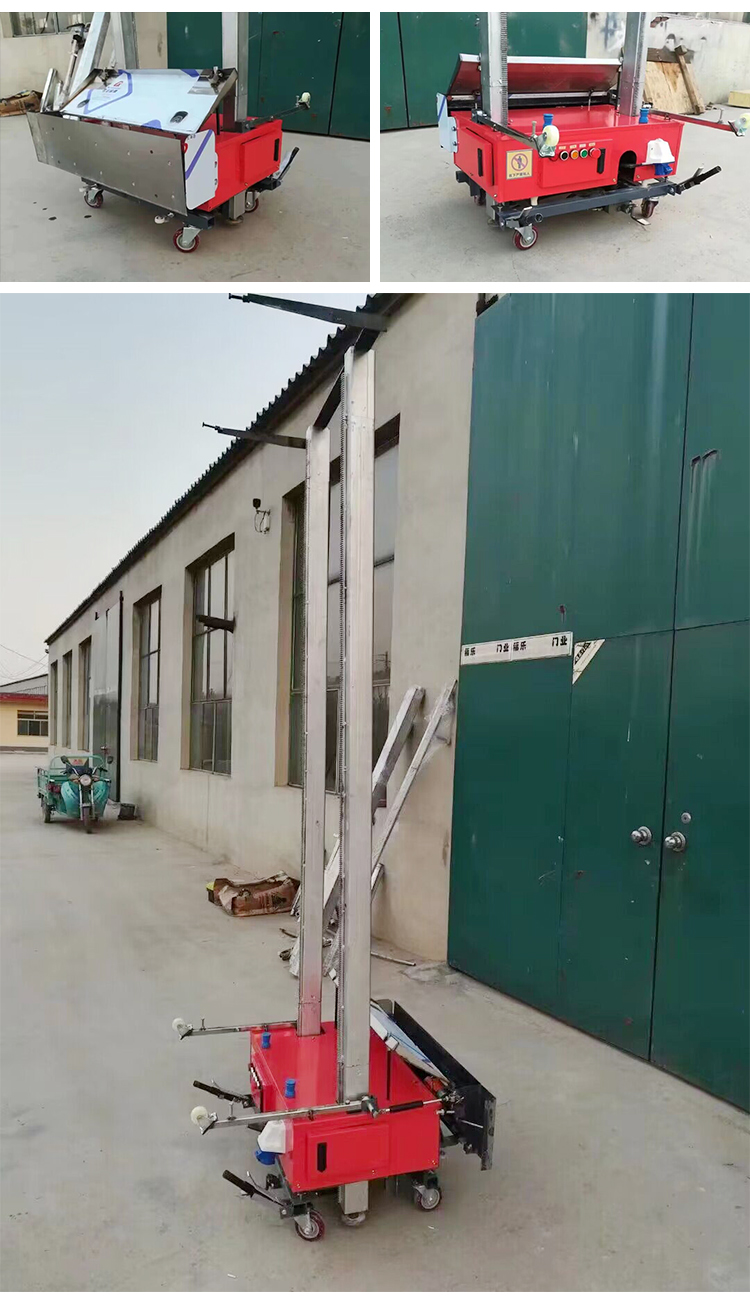

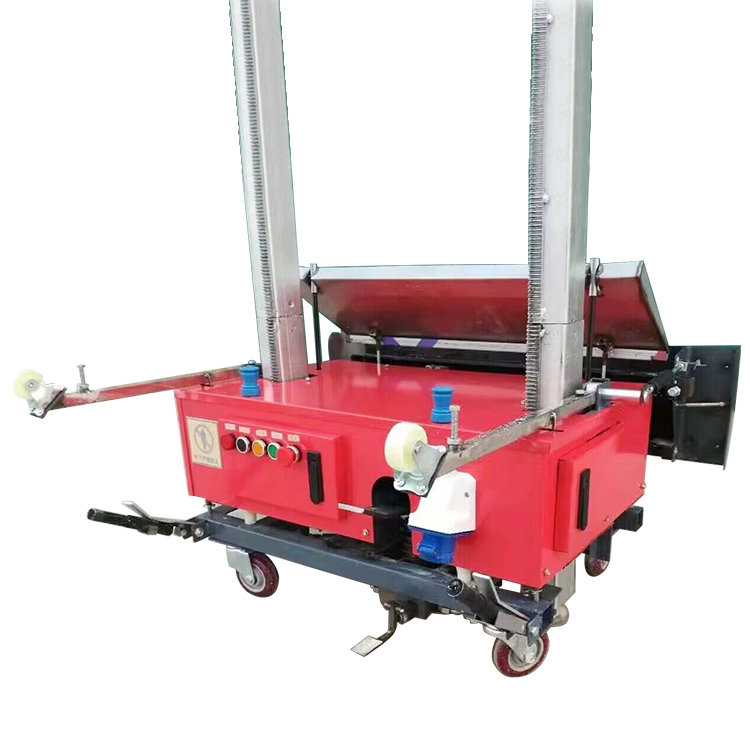

Machine display
Model | KL-TP5-800 | Alignment device | manual leveling |
Plastering board width | 800MM | Fixtures | Hydraulic system |
Plastering height | 2.6-3.5M | Host size | 800*650*500mm |
Plastering Thickness | 5-30MIN | weight | 120kg |
rata of plastering | 400 square meters/8h | Climb mode | Gearwheel |
voltage | 220v/380v | Host packing size | 1.05*0.8*0.8M |
motor power | 1.5kw | Pole packing size | 2.45*0.32*0.2M |
cement-sand ratio | 1.3 | Gross weight after packaging | 260KG |
