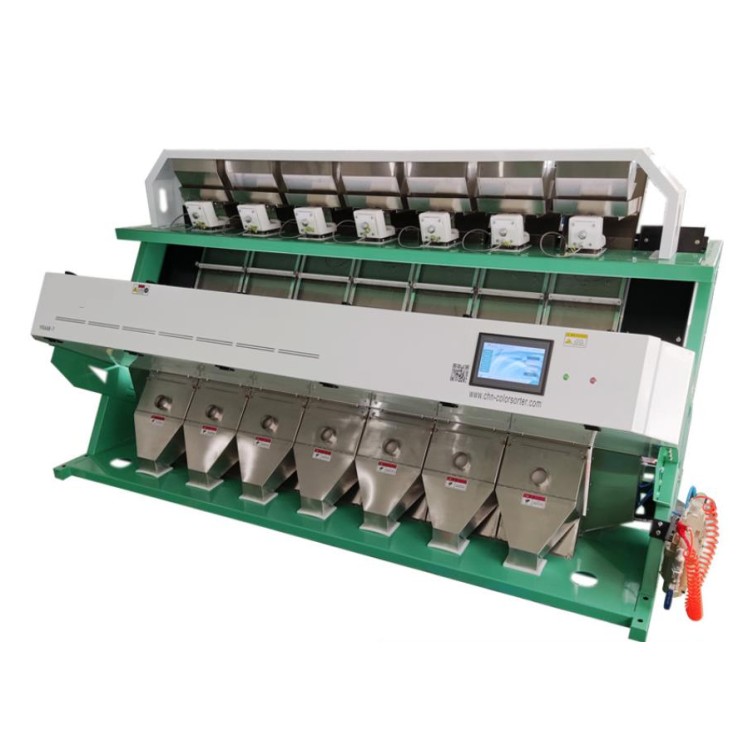

Color Sorting Machine

Because there are many types of color sorters, the selected materials are different, the output is different, the required models are different, and the prices are also different. Please consult us before placing an order.

Product analysis

Application range

Color sorting effect

Color Sorter Core Technology:

1.The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.

2.Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.

3.The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

4.Unique material trough equipped with special anodizing process can ensure the output and make the product reach the international level. It can be equipped with waterfall flat and narrow chute channel, which can meet many kinds of material color selection.

5.High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption; in view of the characteristics of large and small particles of raw materials, solenoid valves of different sizes are adopted.

6.Excellent rejection rate (take-out ratio 10:1). Advanced image acquisition system + intelligent image processing algorithm + high quality nozzle system = Excellent rejection rate

7.Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation, and makes the machine easy to learn and use.

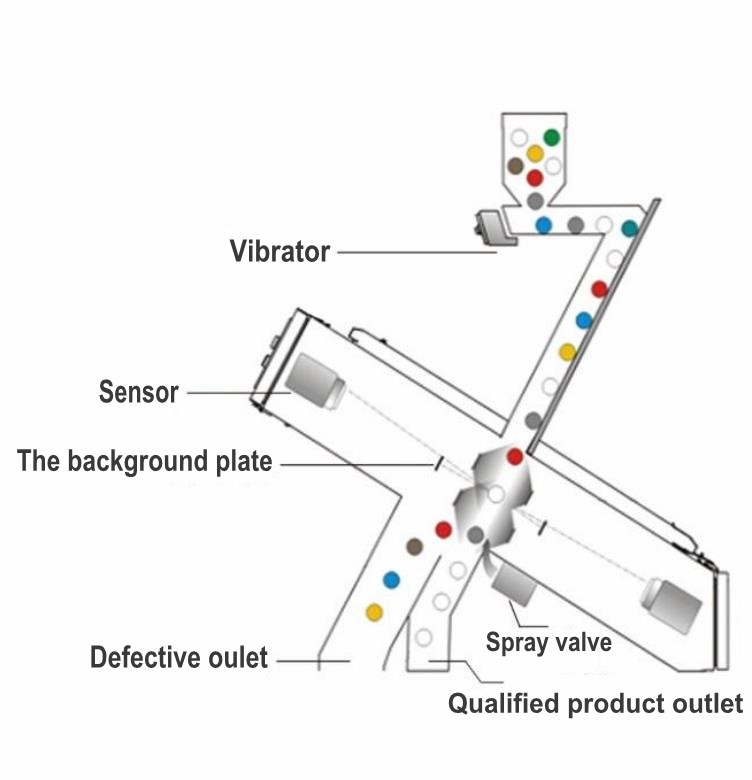

8.The selected material enters the machine from the top hopper, slides down the channel through the vibration of the vibrator device, accelerates the falling into the observation area of the sorting room, and passes through the sensor and the background plate. Under the action of light source, according to the intensity and color change of light, the system generates output signal to drive the solenoid valve to work and blow out the heterochromatic particles into the waste cavity of the hopper, while the good selected materials continue to fall into the finished cavity of the hopper, so as to achieve the purpose of sorting.

Q&A:
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.



2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.



4. Is oversea service available?
Yes, our engineers could go abroad when required.



5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
